THUNDERSTORAGE

Name: THUNDERSTORAGE - UP TO 3.5 MWH FULLY INTEGRATED
Brand: QiOn

UP TO 3.5 MWH FULLY INTEGRATED

The THUNDERSTORAGE is QiOn's most advanced high‑density, long‑lasting, self‑contained Battery Energy Storage Solution.

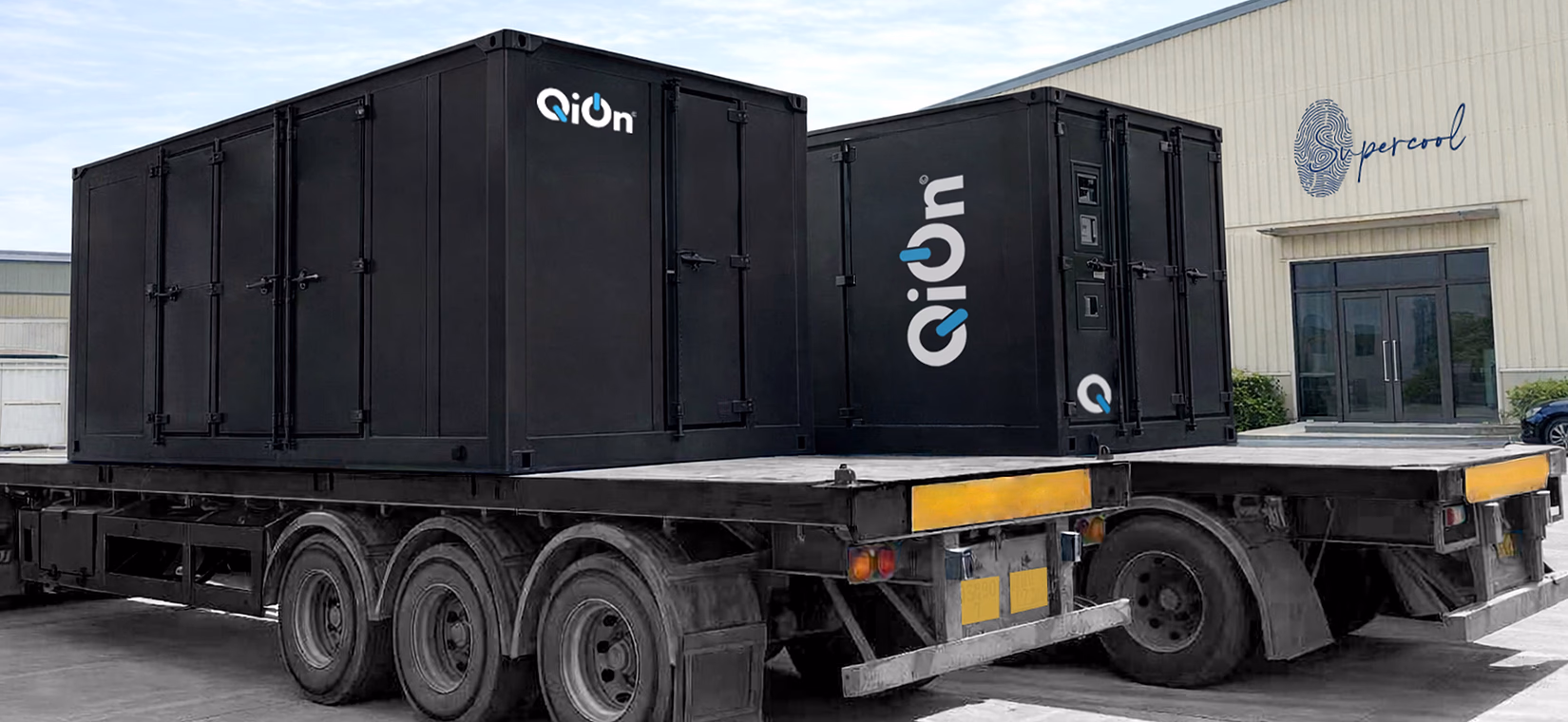

A 6m/20ft BESS completely integrated into a solid proprietary container‑type structure with a power supply capacity up to 3.5MWh, weighing less than 35t, easy for Transport (avoiding 'Exceptional Transport' classification).

Using a proprietary PCS (power conversion system) developed by QiOn, it is possible to charge and discharge up to 2C. It also features an advanced Multi‑voltage System (400/480/690/800/1000V).

THUNDERSTORAGE manages off‑peak charging to capitalize on lower energy costs — and can discharge during peak demand to run operations or feed energy back into the grid, preventing blackouts and brownouts. This system allows your business to drastically cut energy costs and help provide grid stability.

THUNDERSTORAGE 3.5 MWh integrated with solar panels

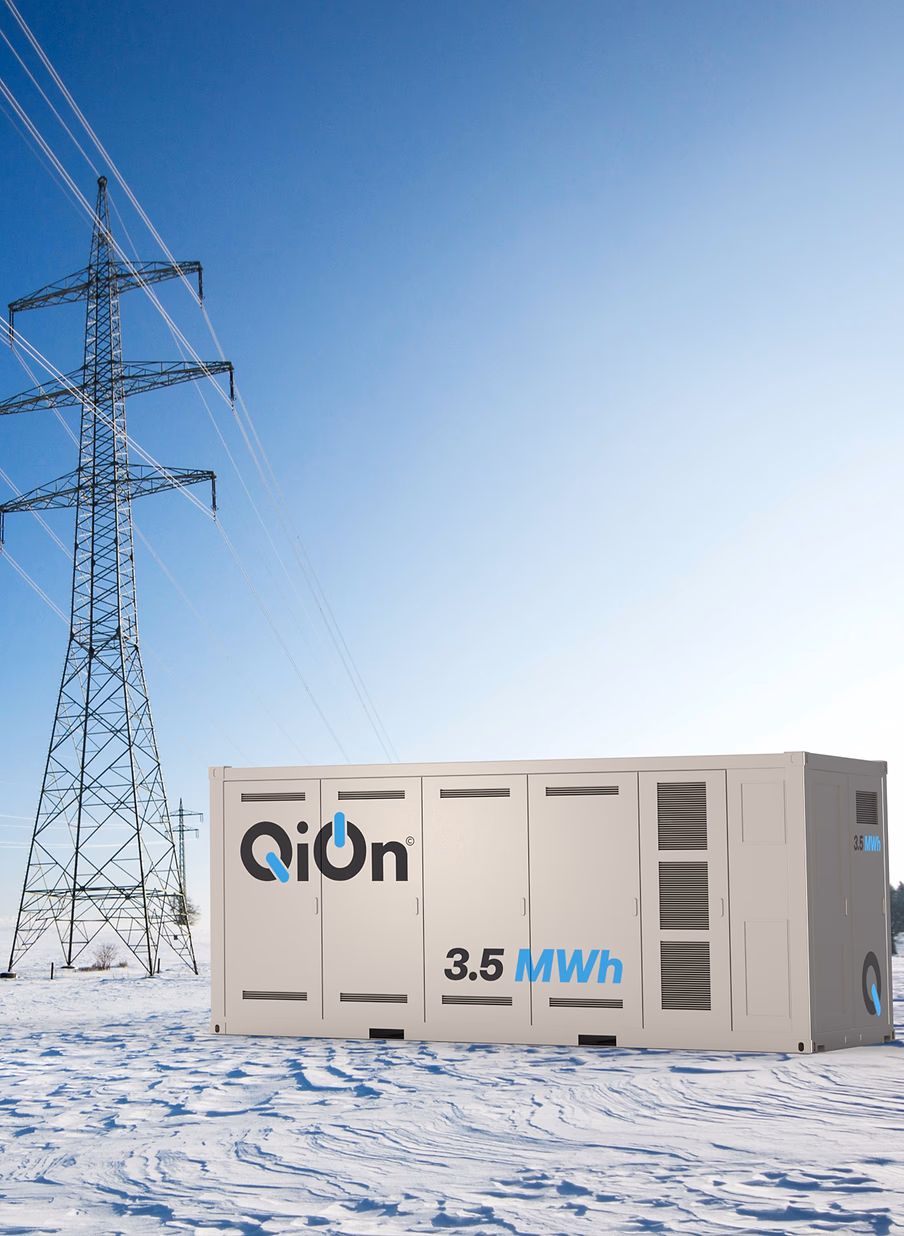

THUNDERSTORAGE 3.5 MWh stainless steel 3D render

Height:2896 mm (96 ft)

Width:6058 mm (199 ft)

Depth:2438 mm (80 ft)

Net Weight:<35t (1 metric ton = 1,000 kg)

Extra:Available with stainless‑steel enclosure for enhanced durability. Available with DC output configurations.

Capacity:1 | 1.5 | 2 | 2.5 | 3.5 MWh

Charging / Discharging:0.125C | 0.25C | 0.5C | 1C | 2C

Output Multivoltage:400 | 480 | 690 | 800 | 1000 VAC

Features

Thermal Management

All QiOn battery modules are liquid cooled and heated. The temperature control is managed using the proprietary QiOn Thermal Management System. Q‑TMS®: an active thermoregulation system designed, developed and manufactured by QiOn. (QiOn International Patent US030692).

Safety & Protection

Integrated FSS (Fire Suppression System): provides detection, extinguishing, and cool‑down capabilities (CO₂‑free for easy maintenance — no periodic replacement required). UL/CE 9540A fire test compliant. Dynamic HVB (High Voltage Box) to isolate individual racks in case of fault (one HIB per rack).

Structure & Integration

6M / 20 ft solid container‑type structure, weighing less than 35t, avoiding 'Exceptional Transport' classification. Final weight may vary and requires confirmation after each configuration. Fully integrated system: UPS, Q‑PCS, Q‑TMS, Q‑EMS, BMS, Q‑HV Box, BUX, Q‑IoT, fault/smoke/gas detection, fire extinguishing, and liquid cooling — no auxiliary cabinets required.

Entirely designed and built-to-last by QiOn.

THUNDERSTORAGE BESS being lifted during production

Reliability & Control Architecture

Module‑level, self‑integrated BMS architecture (no master/slave logic), improving fault tolerance and system availability. Active energy balancing within each rack to maintain uniform SoC/SoH and reduce aging dispersion. High Voltage Box (HVB) with independent controller, enabling robust HV management and enhanced system resilience. Multi‑sensor acquisition architecture supporting advanced monitoring, diagnostics, and control via the proprietary Q‑EMS.

Plug‑and‑Use Solution

Easy to install and maintain: all utility components are fully integrated with full access for easy intervention on battery racks. Battery packs and power electronics are delivered pre‑installed and wired — READY TO USE. ALL‑IN‑ONE, AS IT IS.

THUNDERSTORAGE installation at Chatillon CNI CVA

Flexibility & Future Integration (Grid‑Oriented Applications)

Architecture designed to enable future integration of DC‑input solutions (upgrade‑ready for evolving configurations). Energy distribution and power electronics designed to support future C&I applications and operational modes. Extended Q‑EMS roadmap supporting peak shaving and advanced energy management for industrial parks, smart cities, and energy communities.

Capability to pair with co‑generation plants and operate as an auxiliary/backup power plant, including potential relocation to sites requiring temporary or additional resilience (e.g. hospitals, government buildings, critical infrastructure). IoT integration and interface readiness to support interconnection with local grid trading platforms, enabling evolution from a static asset into a VPP (Virtual Power Plant) and participation in VPPA (Virtual Power Purchase Agreement) schemes.

Warranty

QiOn offers a longlife warranty up to 15,000 cycles with possibility for extension.
In addition, QiOn offers installation, monitoring and maintenance services on request.

Featuring the Q-EMS

The Q‑EMS enables intelligent management of the entire system through remote accessible management applications, with centralized and real‑time supervision.
