Name: THUNDERGRID 5MWh Distributed Layout
Brand: QiOn

Expand the Boundaries of Energy Efficiency.

DESIGNED & MANUFACTURED by QiOn

From C&I installations to utility-scale VPPs and energy communities, QiOn's BESS solutions are engineered for every market and scale. With the proprietary Q-EMS (Energy Management System) at their core, our turnkey energy storage systems deliver the intelligence and flexibility to manage energy on your terms.

QiOn's offerings in the energy storage and management sector go beyond storage itself: it is an ecosystem of proprietary hardware and software technologies that extend the boundaries of energy efficiency and grid ancillary services — ensuring maximum flexibility in energy management.

With every critical component engineered and built entirely in-house, QiOn's BESS solutions don't just store energy: they understand energy like never before. And deliver beyond. Designed to last for decades, QiOn's BESS can withstand harsh weather conditions and deliver the needed performance. Polar‑to‑Desert applications (−30 °C to +60 °C). IP65/IP66 protection. Remote monitoring and little‑to‑no maintenance.

Both the Battery Rack and the external structure feature proprietary designs and are available in stainless steel, guaranteeing safe long-term operation. Special Configuration Grades are available to meet site-specific specifications.

Polar

Desert

Nautic

Altitude

Overheating

IP65/IP66

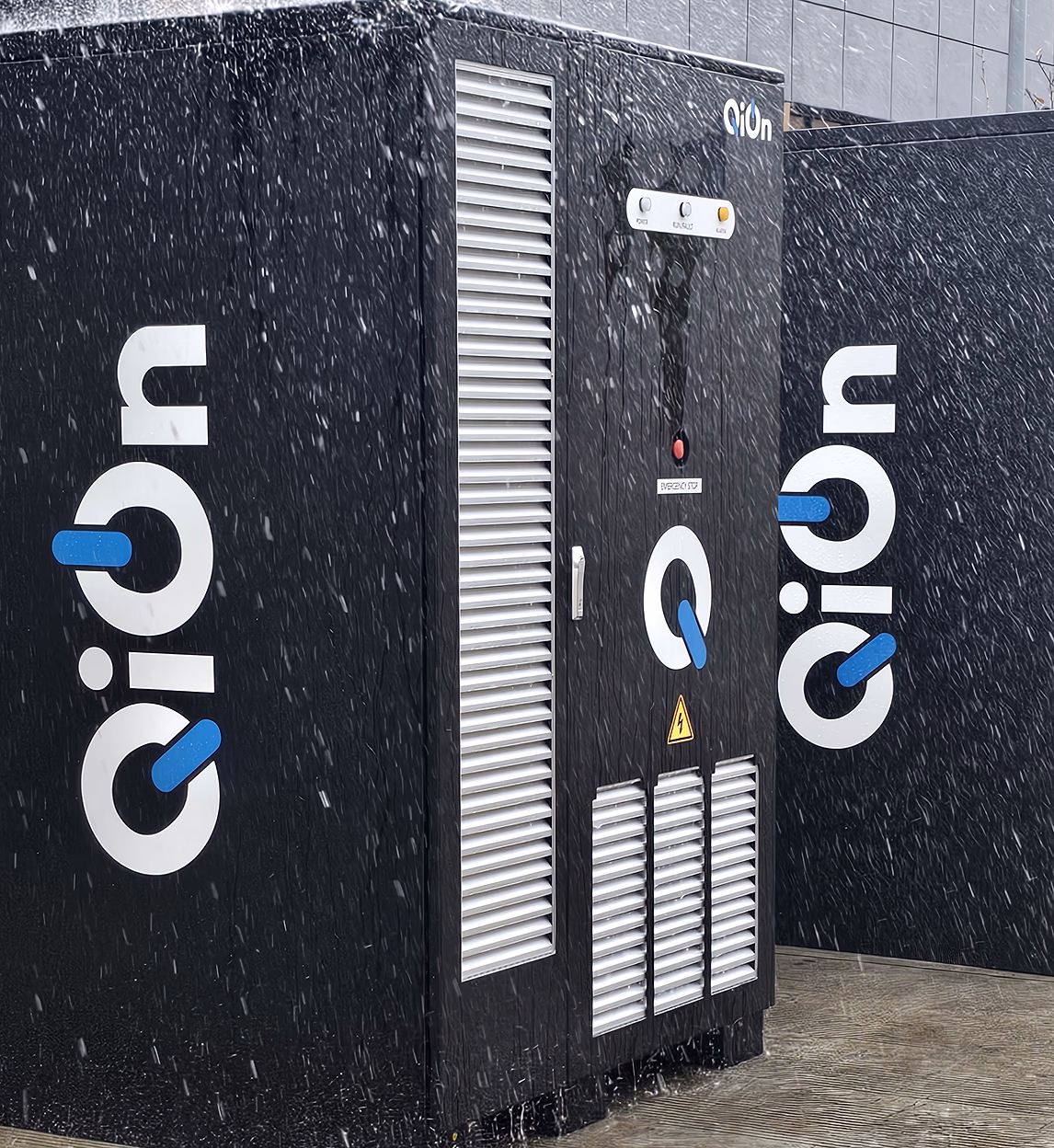

BESS from QiOn IP protection grade — QiOn BESS with IP65/IP66 protection grade — engineered for polar, desert, nautic, altitude, and overheating conditions

Compliant with

ISO9001

ISO14001

ISO45001

ISO20000

ISO27001

ISO56002

PROPRIETARY TECHNOLOGY

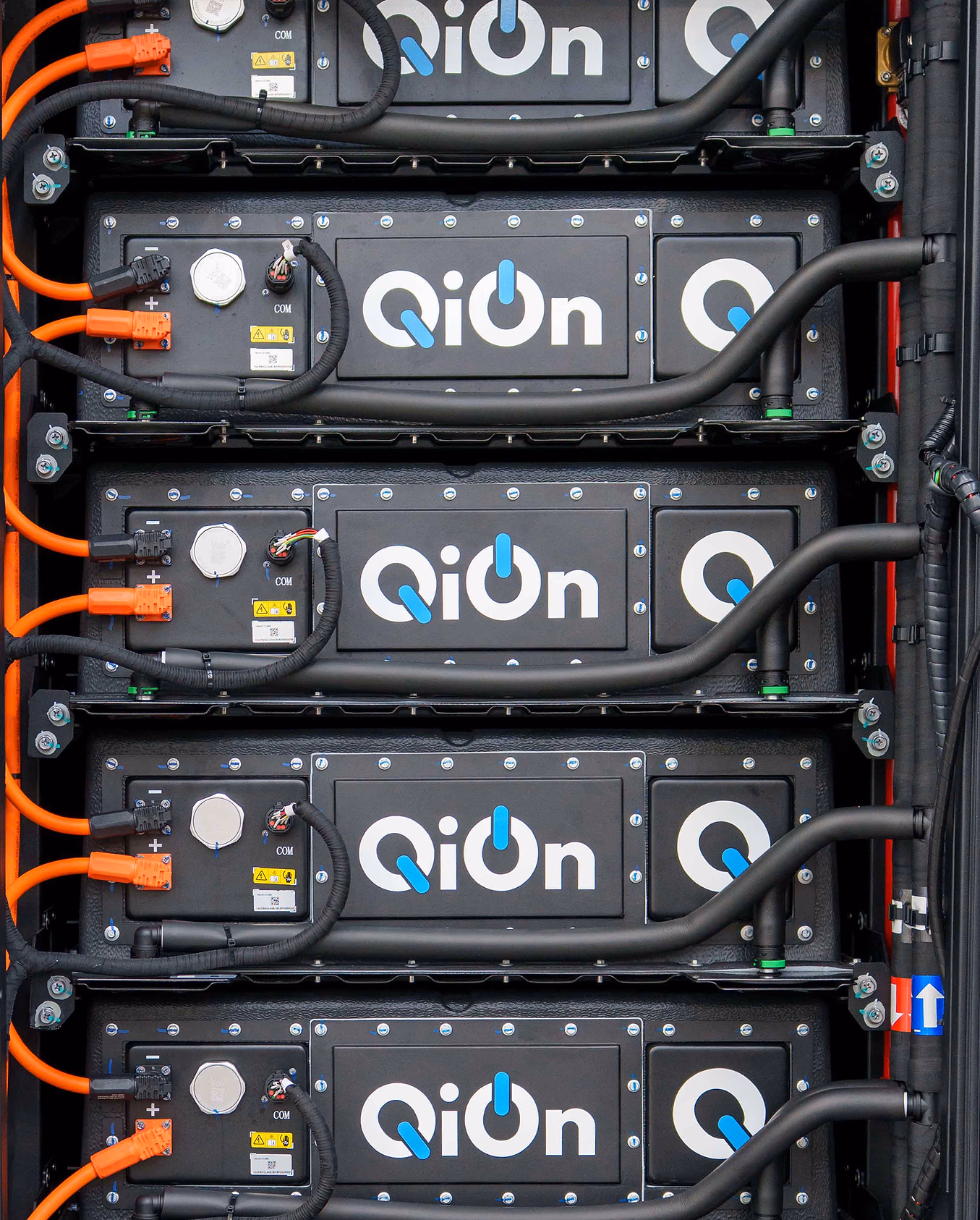

15,000 Cycle Battery Technology

QiOn offers a long-life warranty up to 15,000 cycles with possibility for extension. In addition, QiOn offers installation, monitoring and maintenance services on request. QiOn battery packs are IP68. Proprietary pre‑heating logic to rapidly bring cells to optimal temperature for high‑speed discharge, particularly relevant for grid services (for example: frequency regulation). Proprietary charging dynamics algorithms and curve regulation to optimize charging behavior, efficiency, and long‑term battery health.

DC‑DC Modules

Proprietary DC‑DC architecture eliminates AC conversion stages, drastically reducing energy dispersion and conversion losses — delivering higher round‑trip efficiency than conventional AC‑coupled BESS systems.

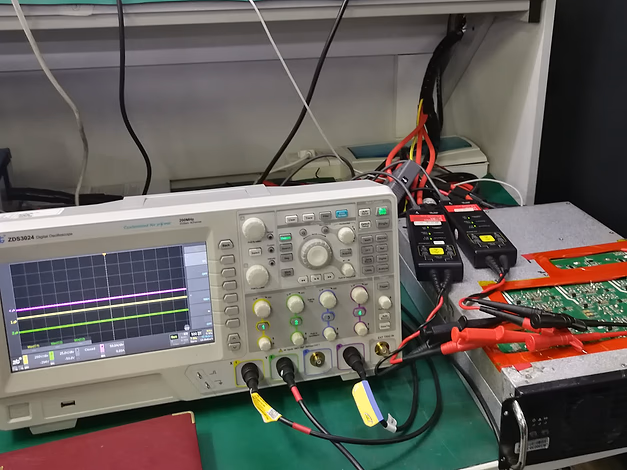

DC-DC module testing bench

HIGH VOLTAGE SYSTEM WITH MULTIVOLTAGE CONFIGURATION

Multivoltage System with Dynamic HVBs ‘High Voltage Box’ to isolate the individual rack in case of operational needs:

400 / 480 / 690 / 800 / 1000 V

Q‑TMS

Q‑TMS is an adaptive liquid Thermal Management System designed, developed and patented by QiOn, engineered to provide active cooling, heating, and thermal stabilization of battery packs within energy storage systems. The system operates across an extended environmental range from −30°C to +60°C, ensuring reliable functionality in extreme climatic conditions. Through multifunctional thermal regulation, Q‑TMS dynamically adjusts heat exchange in real time, maintaining uniform temperature distribution across battery modules and preventing thermal gradients that could affect performance or lifespan.

This closed‑loop thermal architecture allows the storage system to operate independently of external HVAC rooms, reducing infrastructure requirements and simplifying installation logistics.

Q‑TMS outperforms air‑cooled and conventional liquid systems with higher efficiency, faster response, and uniform temperature control. Its predictive, workload‑aware regulation reduces thermal stress and hotspots, extending battery life and lowering thermal runaway risk—without the need for external HVAC infrastructure.

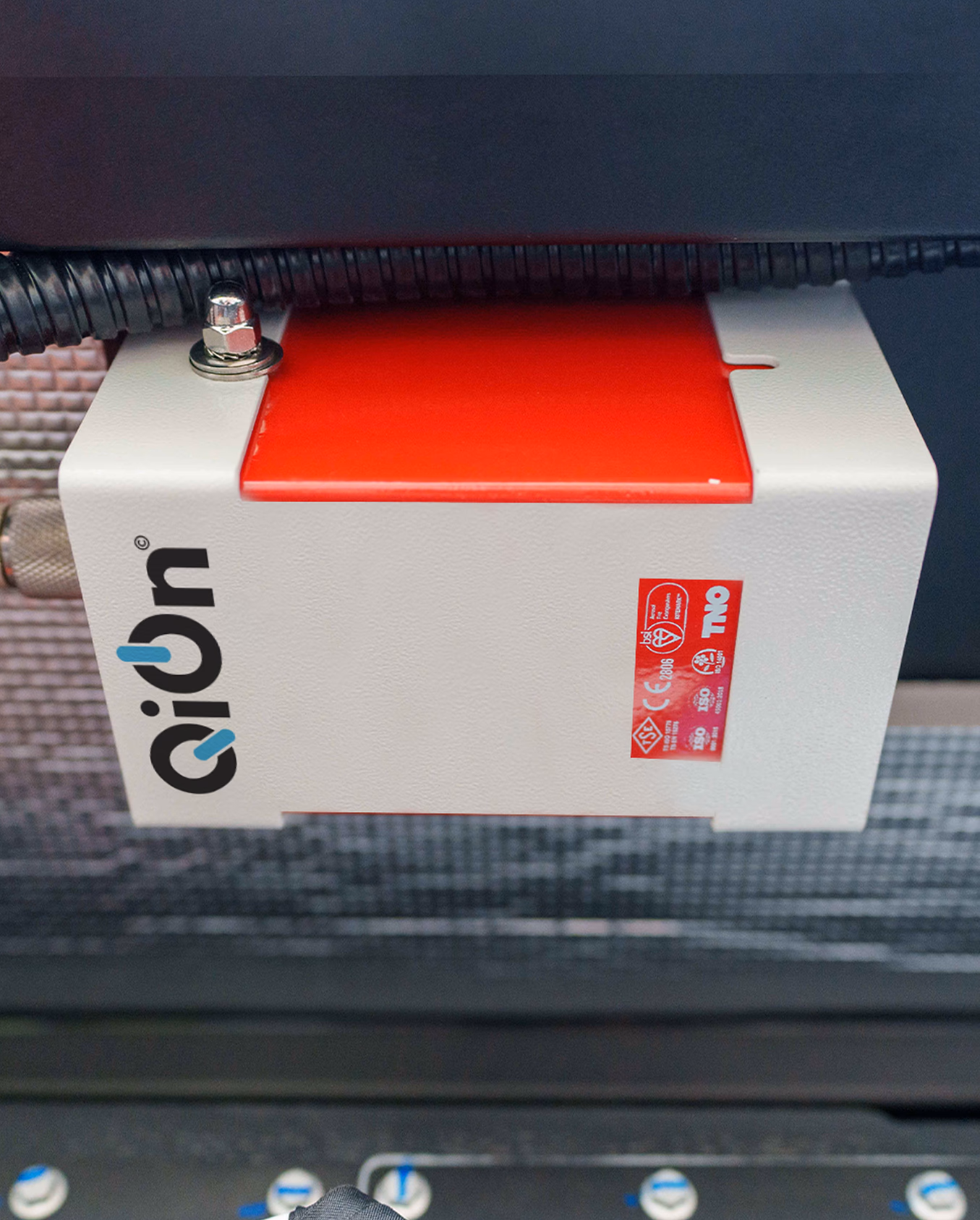

Q‑FES

Not all thermal events are the same. QiOn's Fire Extinguishing System is a proprietary 5 level system combining prevention, detection, suppression, and cooling in a progressive response scaled to event severity.

Unlike traditional systems focused solely on extinguishing, Q‑FES is designed to anticipate and interrupt thermal escalation at the earliest stages, drastically reducing the probability of a fire event and limiting its impact on the overall system.

L.0 – Smart Prevention
L.1 – Early Warning Shield
L.2 – Point Attack Aerosol
L.3 – Rack Flooding Aerosol
L.4 – Thermal Recovery Cooling

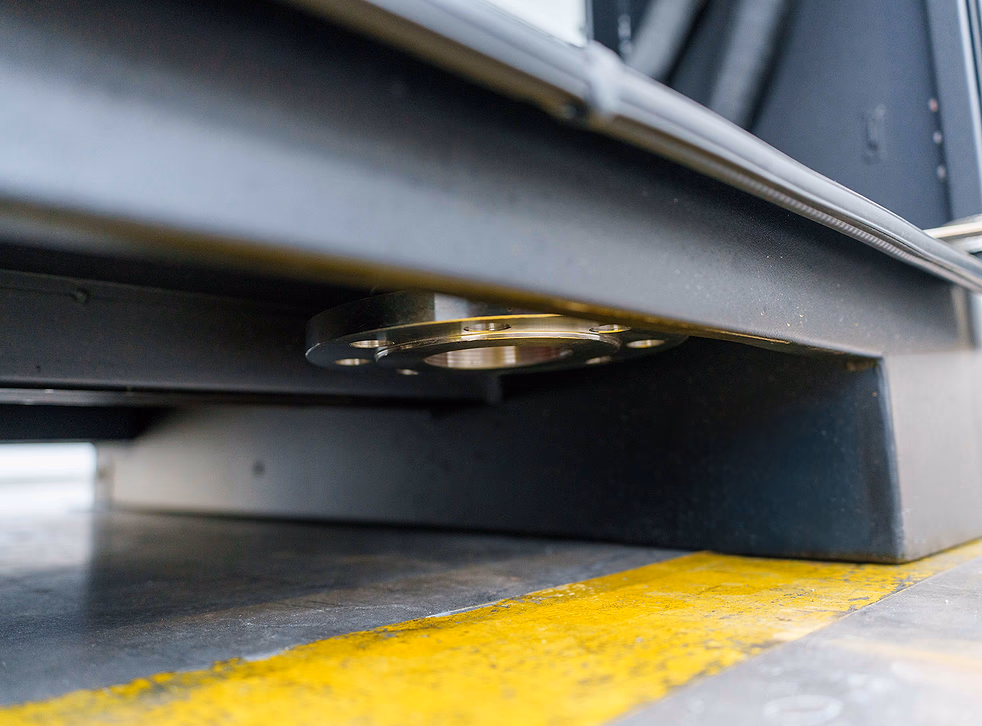

Drain outlet of the internal fire suppression and recollection system, integrated within the BESS enclosure.

KEY SUPPLEMENTAL COMPONENTS

Inverter Systems
Power Management System
Bidirectional Topology
Battery Management System
IoT Sensing
Advanced Predictive Algorithms

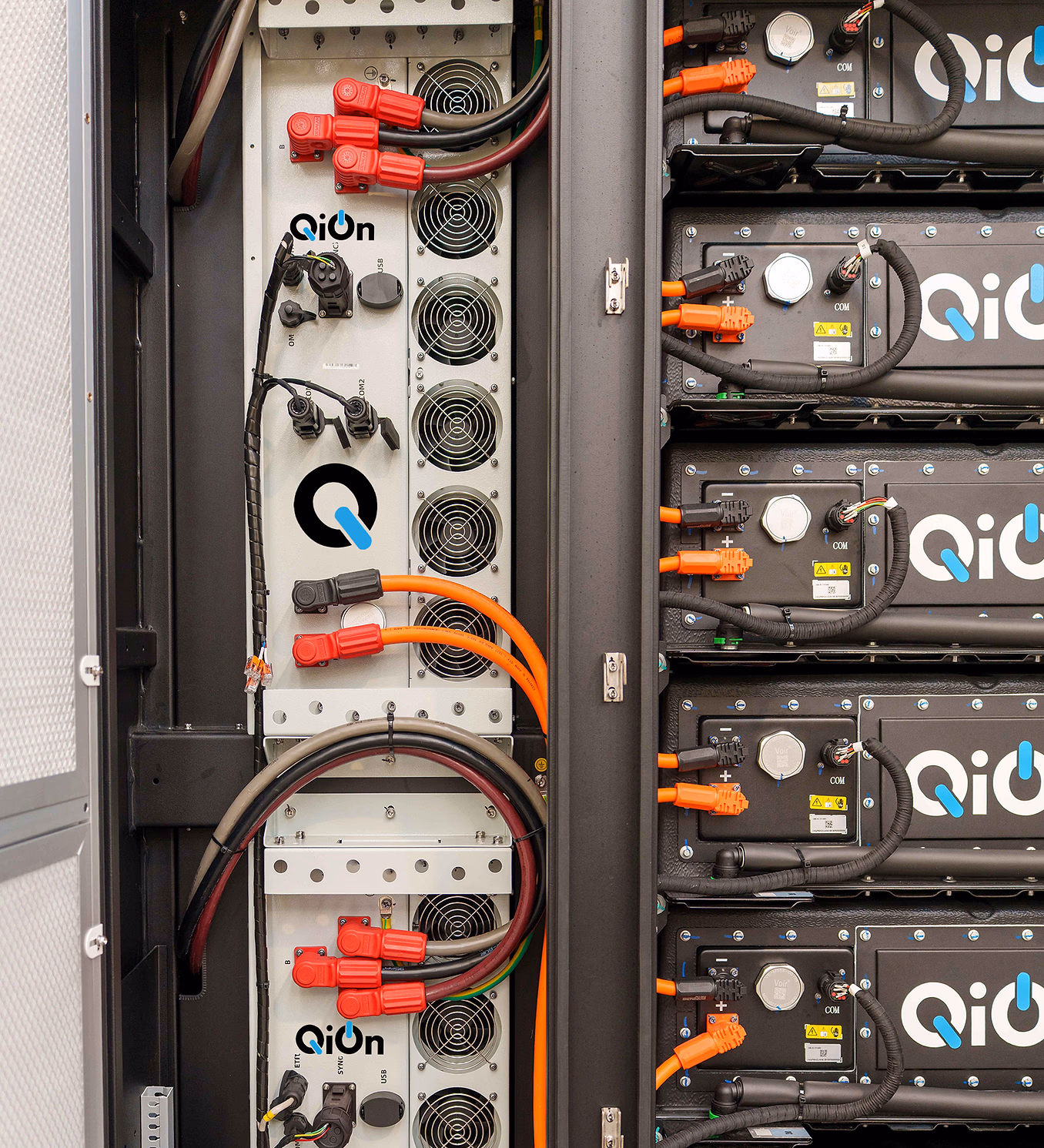

PCS

A technology with an active controlling system present on each rack, enabling flexible individual output voltage regulation and charge/discharge rates of 0.125C / 0.25C / 0.5C / 1C / 2C. QiOn's proprietary PCS supports both Grid-Forming (GFM) and Grid-Following (GFL) operating modes — giving every QiOn BESS the flexibility to adapt to any grid condition.

In Grid-Forming mode, the system acts as a voltage source: it establishes its own frequency and voltage reference, enabling black-start capability, isolated off-grid operation, and full stability support in weak or low-inertia grids. In Grid-Following mode, it operates as a current source, synchronising with the existing grid via PLL to deliver precise active and reactive power — optimised for grid-tied applications, frequency regulation, and peak shaving.

The result: a single BESS platform capable of anchoring microgrids, stabilising weak infrastructure, and seamlessly integrating into strong utility networks — without compromise.

ADVANCED EMS

Q‑EMS

QION'S BESS SOLUTIONS

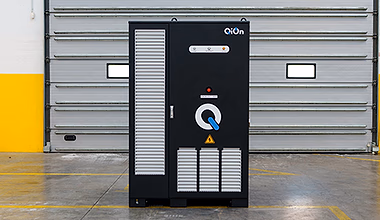

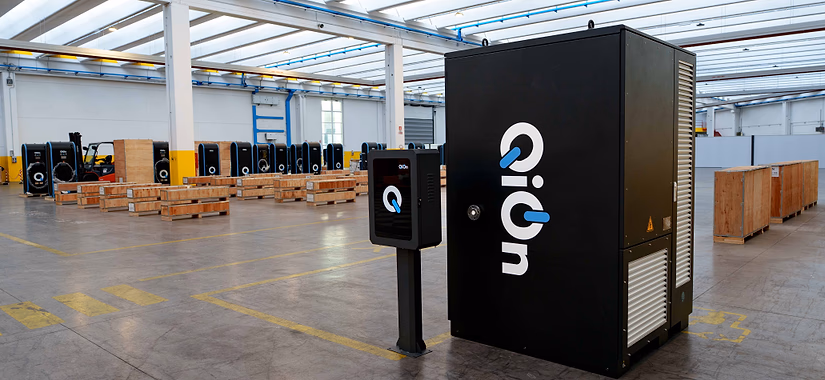

THUNDERCELLup to 250 kWh Fully Integrated

An exceptionally capable BESS solution with ultra‑high energy density and a compact footprint. Fully integrated and equipped with QiOn's proprietary multi‑function Q‑TMS thermal regulation system and proprietary PCS — supporting charge and discharge from 0.5C to 2C. The blueprint for C&I energy solutions.

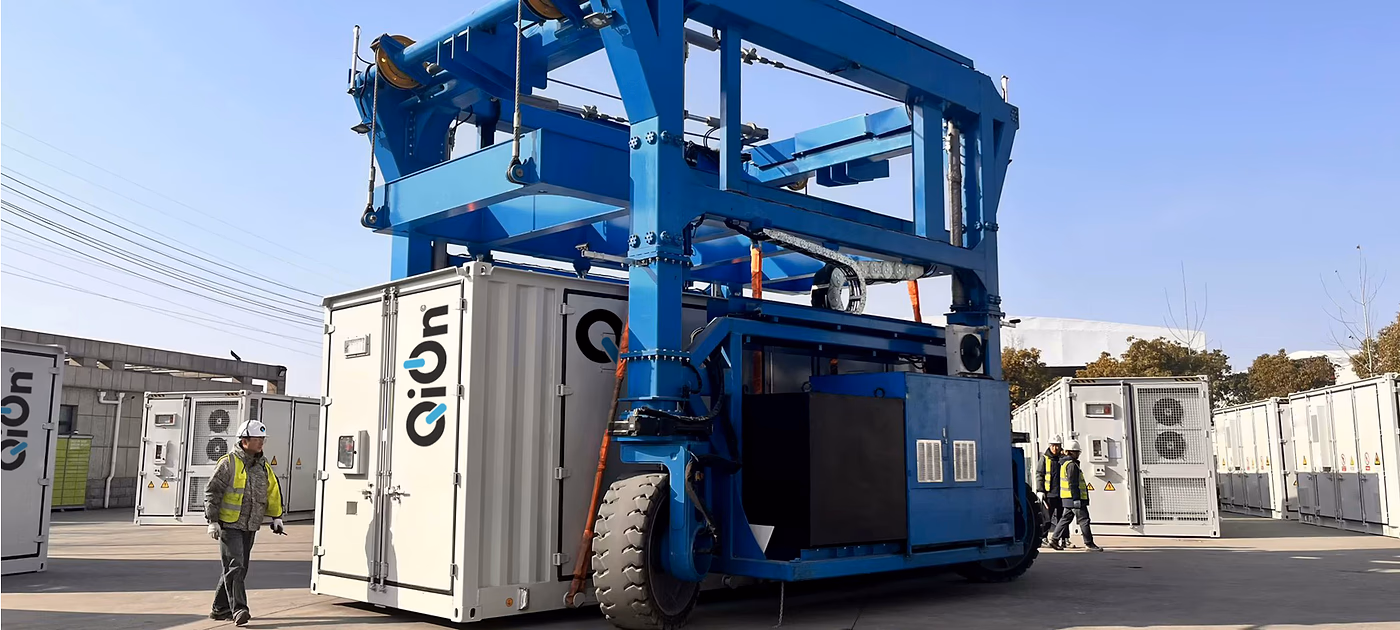

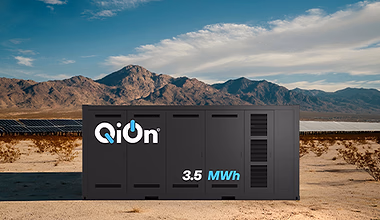

THUNDERSTORAGEup to 3.5 MWh Fully Integrated

A 6m/20ft BESS fully integrated into a proprietary container‑type structure with up to 3.5MWh capacity, weighing under 35t. Via the proprietary PCS, the THUNDERSTORAGE charges and discharges up to 2C, with a multivoltage configuration available (400/480/690/800/1000V).

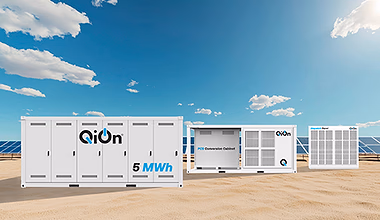

THUNDERGRID5 MWh Distributed Layout

The PCS cabinet and external auxiliary dispatch panels can simultaneously control up to two storage systems — enabling an impressive storage infrastructure for the most demanding energy fields. QiOn's highest‑capacity BESS technology. Designed for the largest energy infrastructure projects.
