E‑DOCK

UP TO 44 KW MOORING POLE NAUTIC GRADE CHARGER

Where Innovation Meets Tradition.

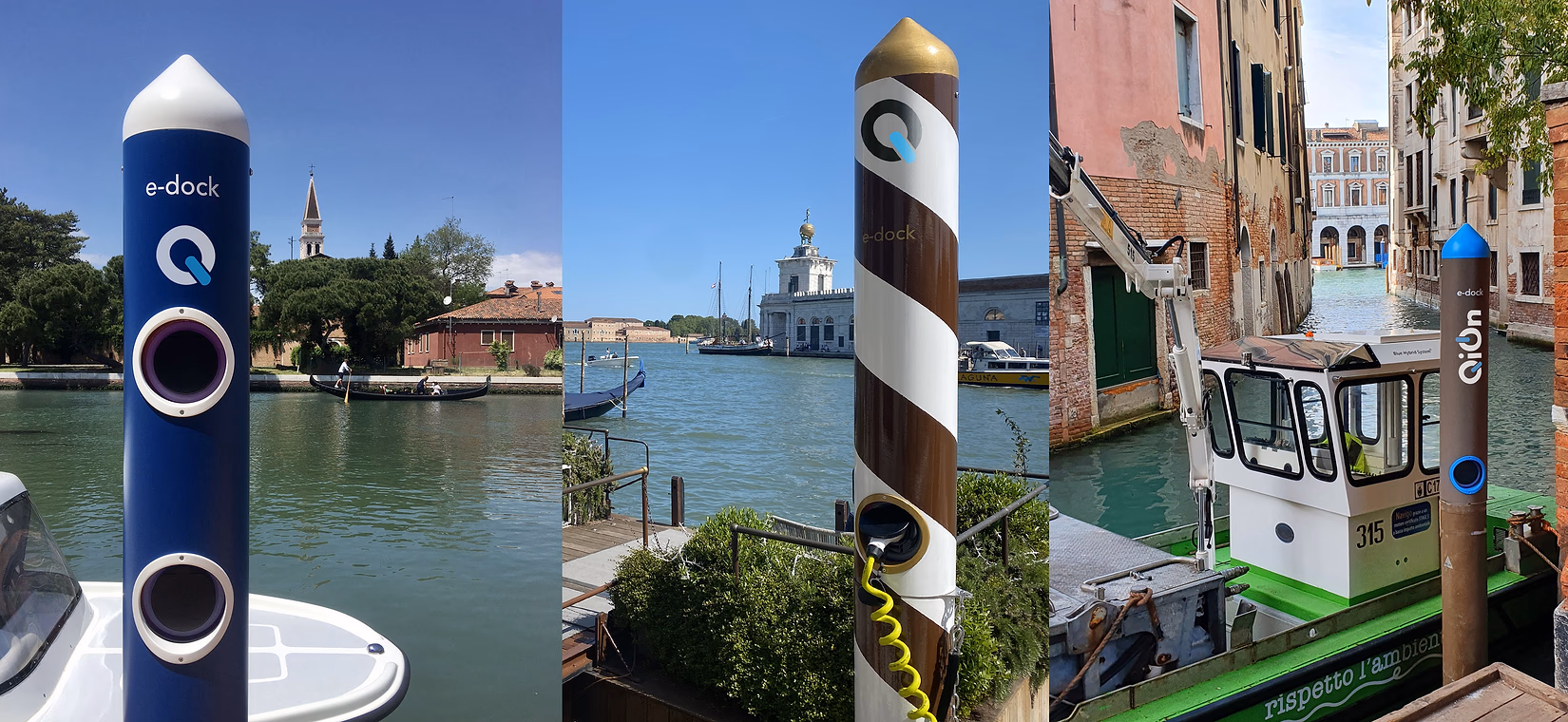

Born from the need to respect Venice's architectural heritage, the E‑DOCK integrates QiOn's charging technology seamlessly into the city's iconic mooring pole — proving that advanced infrastructure can be tailored to any waterfront without compromising its identity. Marine‑grade engineering: IP67, stainless steel, vibration dampening, modular design, 24/7 remote monitoring.

Designed for easy installation and maintenance. Two sections: a structural base for seabed anchoring, and an easily removable summit section housing the charging technology. Vibrations dampened by an elastomer suspension between sections.

• Single and double socket configurations
• Cable version with optional cable winder

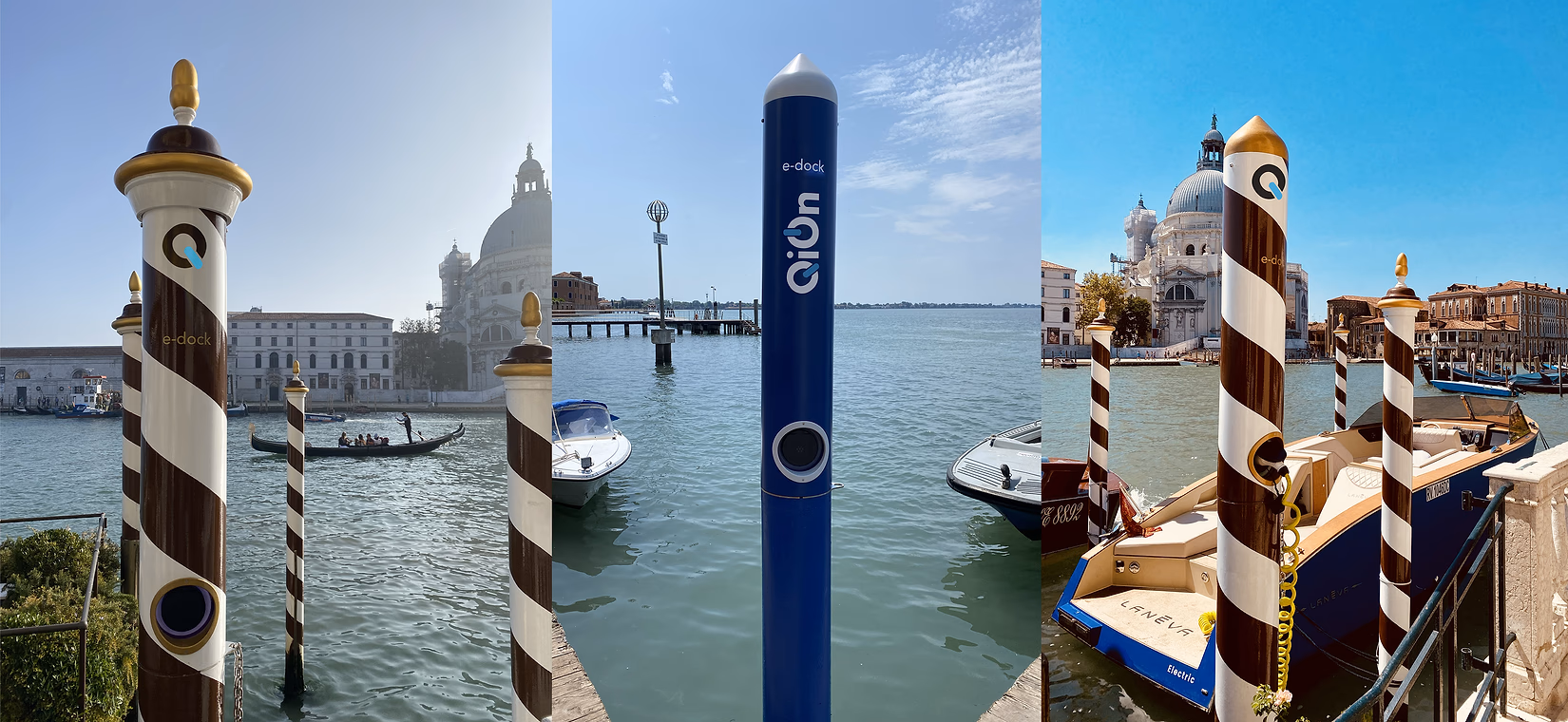

E‑DOCK mooring pole charger
E‑DOCK nautical charger 3D render

Product Specifications

Height (A):1500 mm (58.5")
Diameter (B):250 mm (9.8")
Net Weight:5–7 kg (11–15.4 lb)
Cable Length:Based on request (optional cable management system available)
Voltage Output:AC Single Phase 220 V±10% / Three Phase 380 V±10%
Current Output:32 A / 50 A / 64 A / 80 A
Frequency:50/60 Hz
Power Output:Single Socket: 7/11/22 kW — Double Socket: up to 44 kW (22+22 kW)
