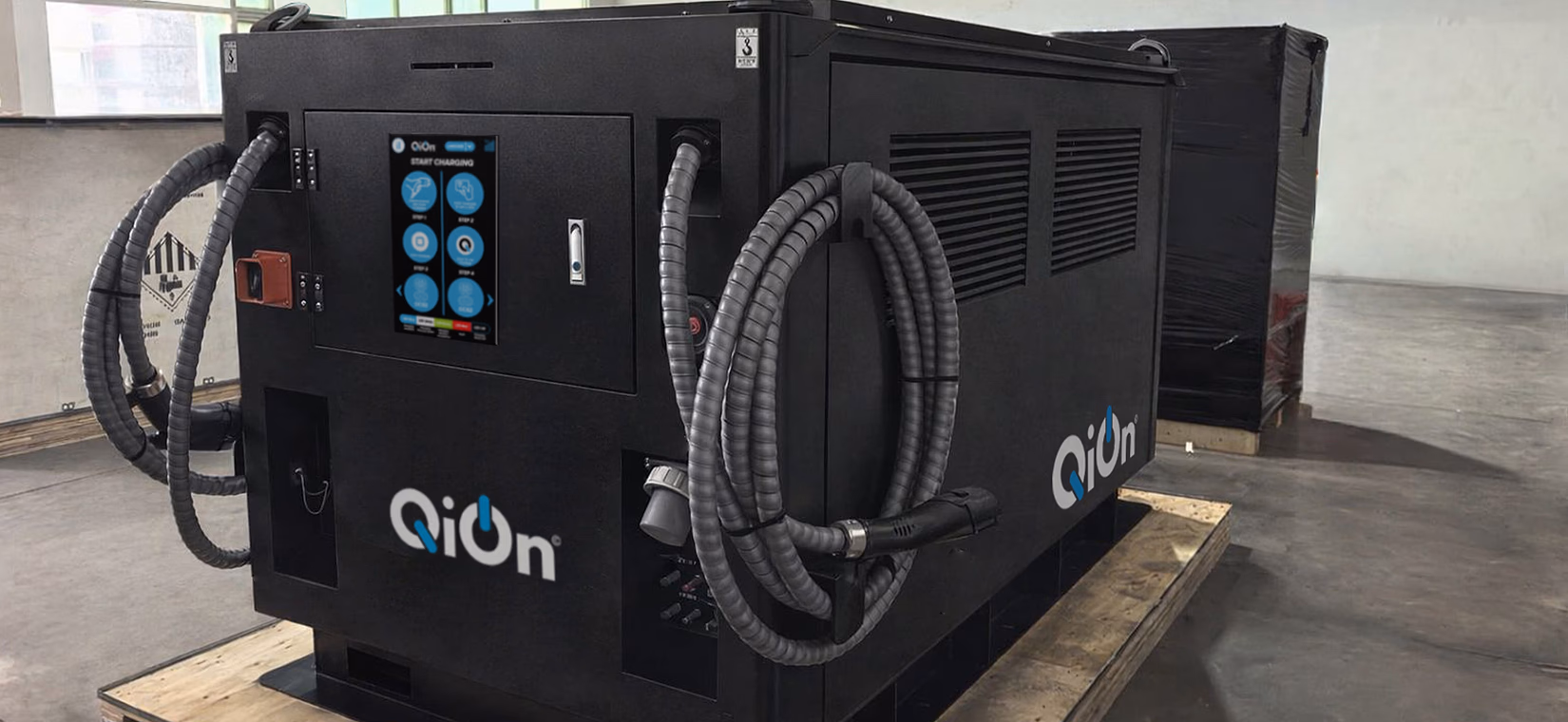

SUPERBRIQ
UP TO 400 kWh - MOBILE CHARGING FOR PORTS AND HEAVY‑DUTY
Highest power density on the market in a fully mobile format. Proprietary Q‑TMS and QDDC on board. Ports, construction sites, e‑truck fleets, temporary installations — no fixed infrastructure needed. The backbone for advanced mobile charging applications — eliminating the cost and complexity of fixed storage infrastructure.
A Powerful Station Where You Need It. When You Need It.
- Available in 200 kWh and 400 kWh versions.
- Stationary and truck/trailer mounted options available.
SUPERBRIQ
Product Specifications
Height (A):2006 mm (78.2")
Width (B):953 mm (37.1")
Depth (C):2670 mm (104.1")
Net Weight:785 + 860 kg (1730 + 1897 lb)
Battery Capacity:400 kWh
Cycle Life:≥5000 times (70% DOD) at 1C
Cooling Method:QTMS (QiOn Liquid Temperature Management System)
AC Recharging:Grid 400 Vac (3P+N+PE) or 480 Vac (3P+N+PE)
DC Recharging:CCS1 / CCS2 / GBT / NACS
Voltage Output:DC Three Phase 200‑1000 V±10%
Current Output:Max 400 A
Power Output:Max 400 kW (DC)
SUPERBRIQ 200 kWh
Height (A):1560mm (61,42")
Width (B):953 mm (37.1")
Depth (C):2670 mm (104.1")
Net Weight:628 + 688 kg (1,385 + 1,517 lbs
Battery Capacity:200 kWh
Cycle Life:≥5000 times (70% DOD) at 1C
Cooling Method:QTMS (QiOn Liquid Temperature Management System)
AC Recharging:Grid 400 Vac (3P+N+PE) or 480 Vac (3P+N+PE)
DC Recharging:CCS1 / CCS2 / GBT / NACS
Voltage Output:DC Three Phase 200‑1000 V±10%
Current Output:Max 200 A
Power Output:Max 200 kW (DC)
Warranty
- 5‑year warranty on battery systems.
- Dedicated project support and rapid response maintenance.
Protection Grades
