THUNDERSET

UP TO 3 MW (VIA MCS) MULTIMEGAWATT CHARGING STATION

The core of the most demanding charging stations.

The THUNDERSET is a scalable megacharging solution that can efficiently meet the needs of the most demanding charging stations. Its flexible and modular electrical design is made possible by the ThunderBrick®, an innovative technology allowing your charging system to scale the output from 1 MW up to multiple Megawatts combinations.

QiOn's proprietary QTMS (QiOn Thermal Management System) technology allows for scalable high power outputs and maximum configurability. Able to be equipped with all charging standards on the market, including the MCS (Megawatt Charging System). Industrial‑grade components, certified for all types of indoor/outdoor applications, stainless steel versions available with IP65/IP66 technology. POWERFUL. SAFE. DURABLE.

QiOn devices equipped with the MCS charging connector can deliver up to 3000 A per plug.

THUNDERSET DEVICES:

• THUNDERSOURCE: the power cabinet that can be scaled to 1 MW per unit. 4 ThunderSource cabinets can be linked to reach a maximum of 4MW.
• THUNDERFAST: the single cable DC charging device able to deliver up to 350 kW
• MEGATHUNDER: a single cable DC charging device able to deliver up to 1000 kW
• MEGATHUNDER MULTIPLUG: the multicable DC charging device able to deliver up to 4000 kW

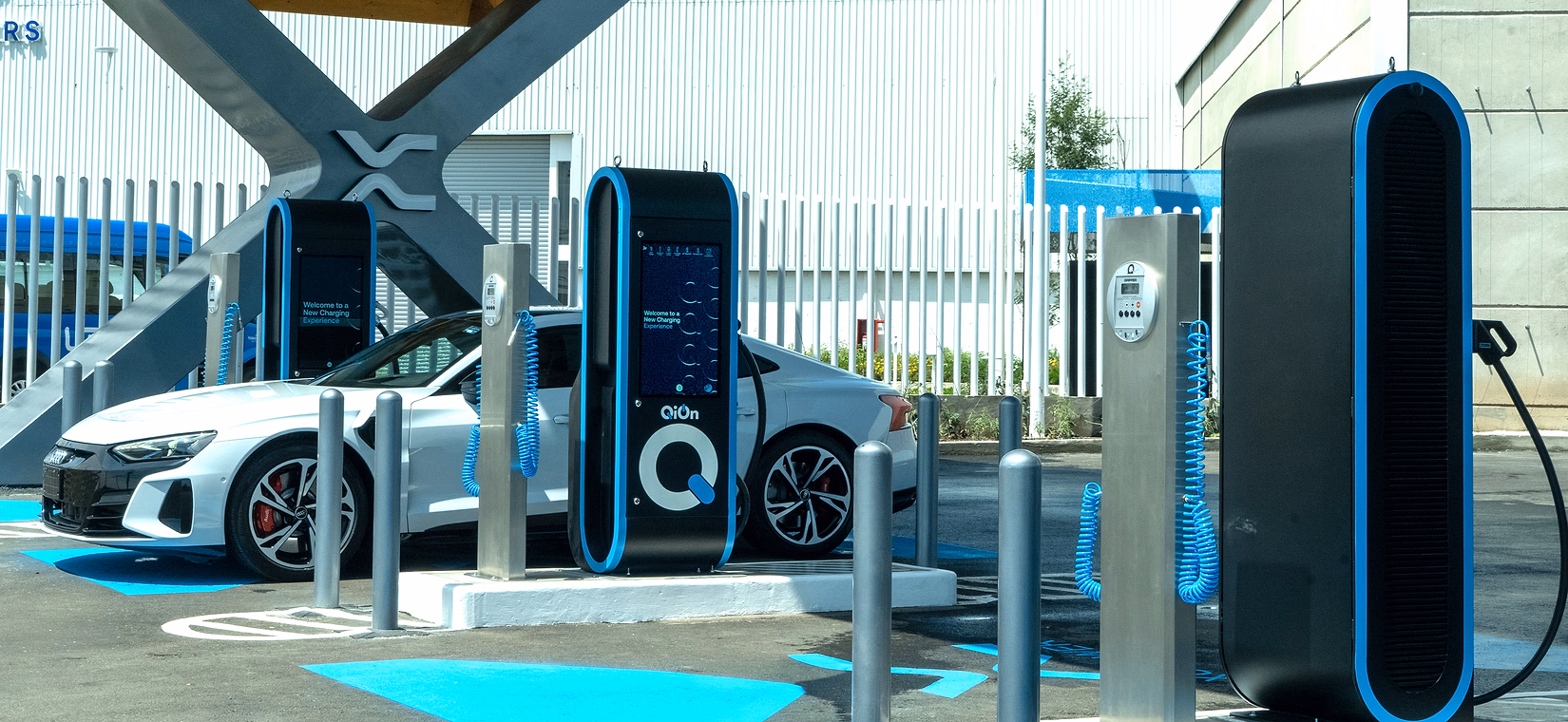

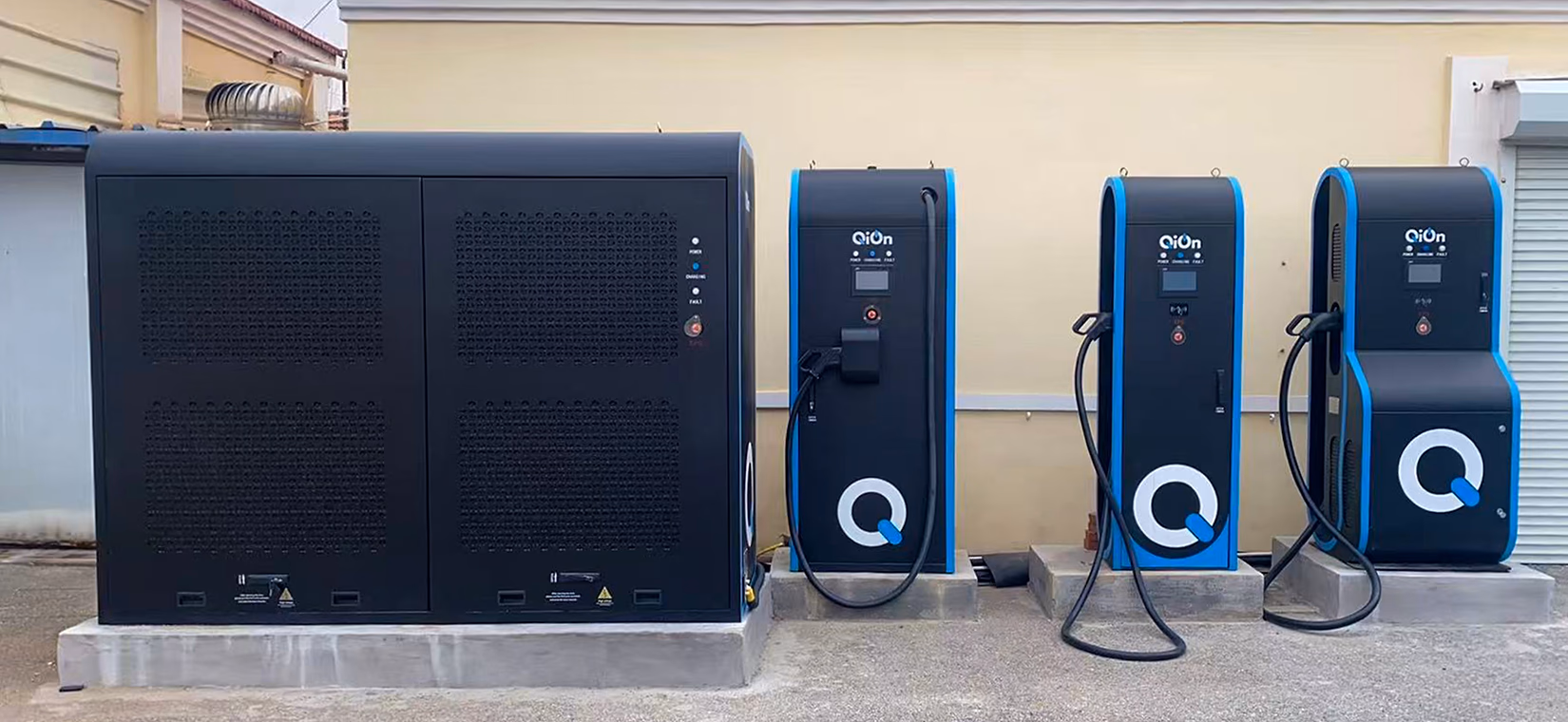

THUNDERSET with Audi at X‑Station
THUNDERSET MultiMegawatt station 3D render
THUNDERFAST DC charger render

THUNDERFAST

Height (A):1958 mm (76.3")
Width (B):600 mm (23.4")
Depth (C):450 mm (17.5")
Net Weight:156 kg (344 lb)
Cable Length:Based on request (cable management system available)
Input:DC Input from THUNDERSOURCE
Voltage Output:DC 200‑1000 V
Current Output:Up to 350 A
Power Output:Up to 350 kW
MEGATHUNDER DC charger render

MEGATHUNDER

Height (A):1980 mm (77.95")
Width (B):750 mm (29.53")
Depth (C):750 mm (29.53")
Net Weight:276 kg (608 lb)
Cable Length:Based on request (cable management system available)
Input:DC Input from THUNDERSOURCE
Voltage Output:DC 200‑1000 V (1250 V via MCS)
Current Output:Up to 990 A in CCS/GBT, up to 3000 A in MCS
Power Output:Up to 990 kW in CCS, up to 3 MW via MCS
MEGATHUNDER MULTIPLUG render

MEGATHUNDER MULTIPLUG

Height (A):2231 mm (87.83")
Width (B):1300 mm (51.18")
Depth (C):647 mm (25.47")
Net Weight:425 kg (937 lb)
Cable Length:Based on request
Input:DC Input from THUNDERSOURCE
Voltage Output:DC 200‑1000 V for cable (1250 V via MCS)
Current Output:Up to 4000 A among multiple plugs (4x1000 A in CCS/GBT or 2x2000 A in MCS)
Power Output:Up to 4 MW

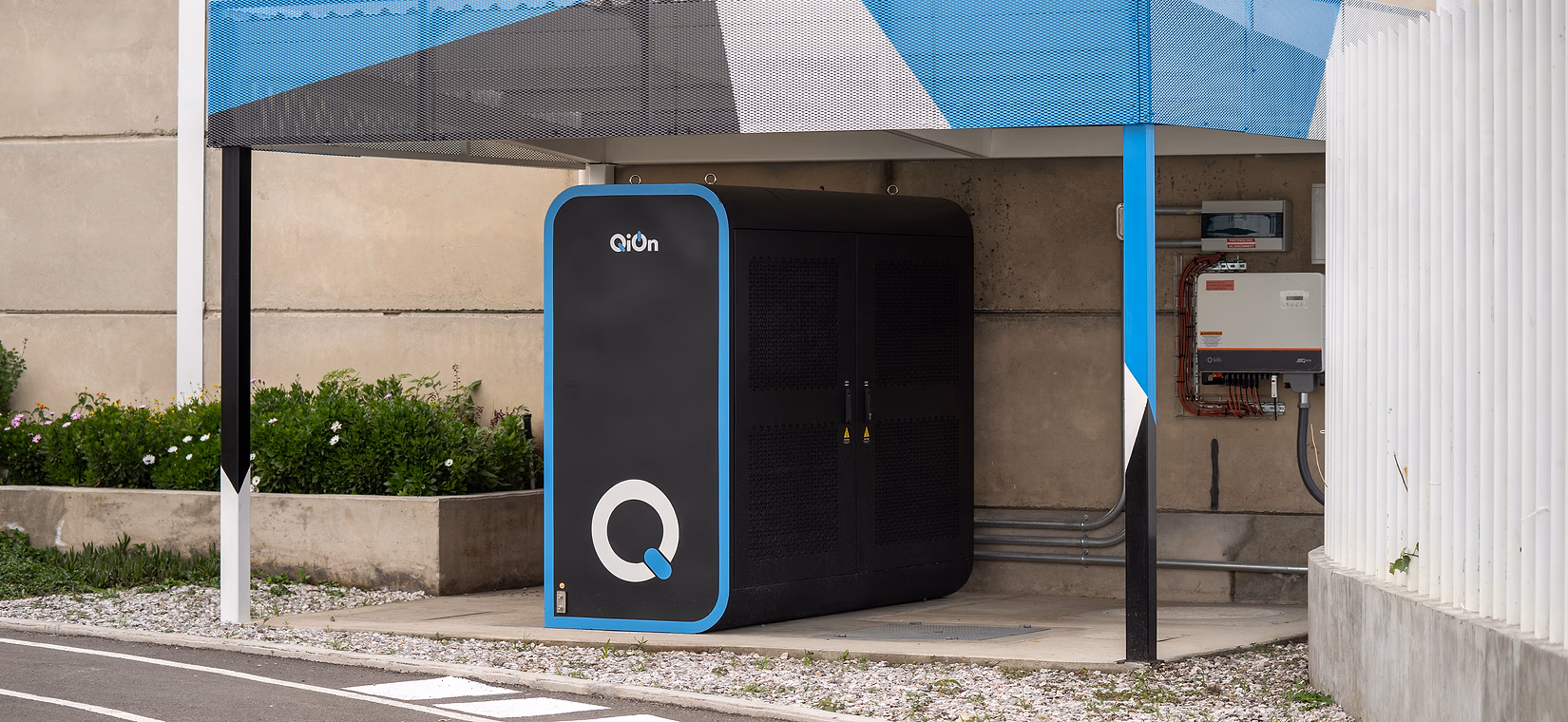

THUNDERSOURCE power cabinet render

THUNDERSOURCE

Height (A):2006 mm (78.2")
Depth (B):953 mm (37.1")
Width (C):2670 mm (104.1")
Net Weight:785 + 860 kg (1730 + 1897 lb)
Type of Input:AC
Voltage Input:Three Phase 380 V±10% / 480 V±10%
Frequency Input:50/60 Hz

Designed to meet the needs of all the most demanding charging stations

THUNDERSET includes:

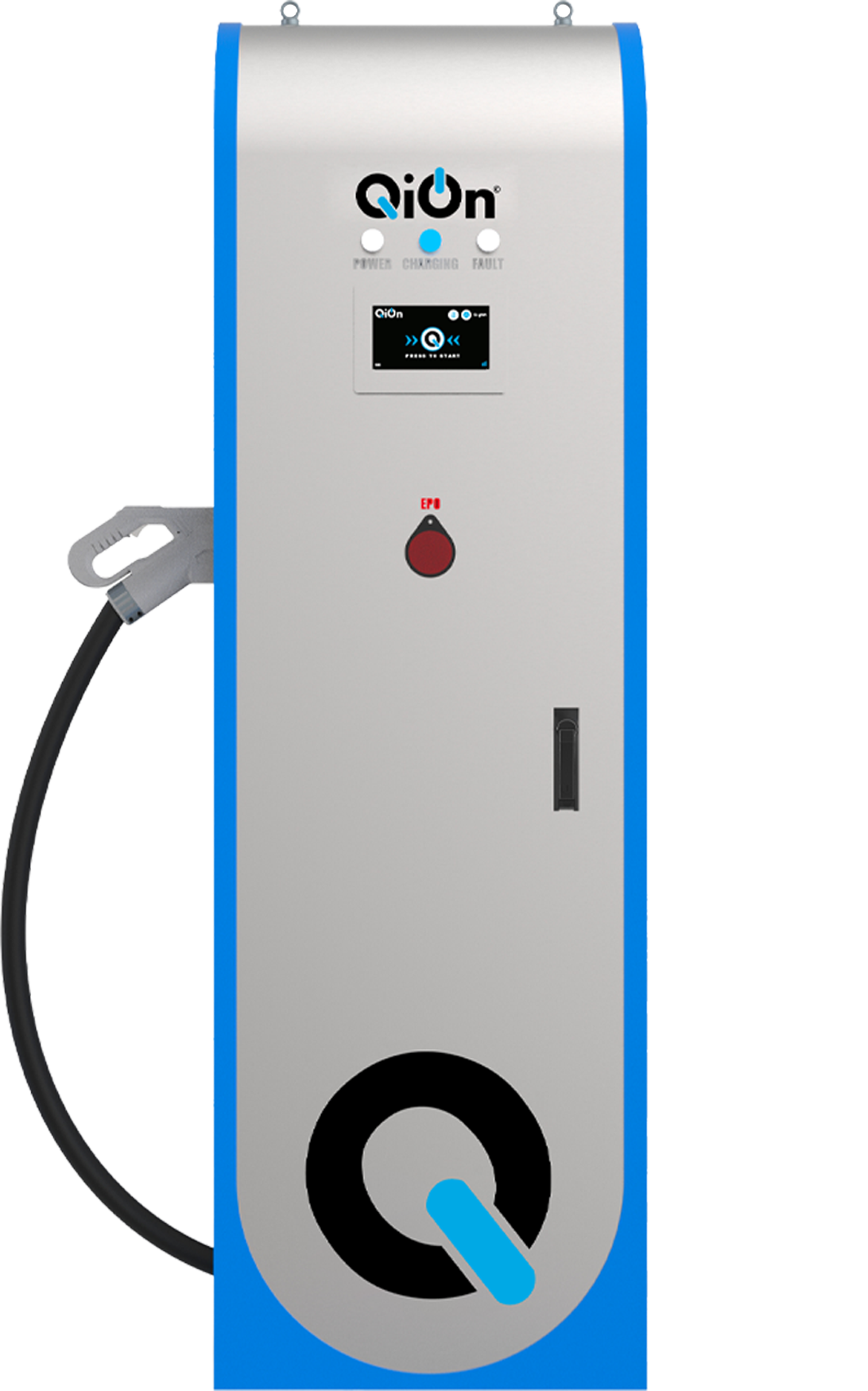

ThunderFast DC 350kW charger render

ThunderFast

the single cable DC charging device able to deliver up to 350kW

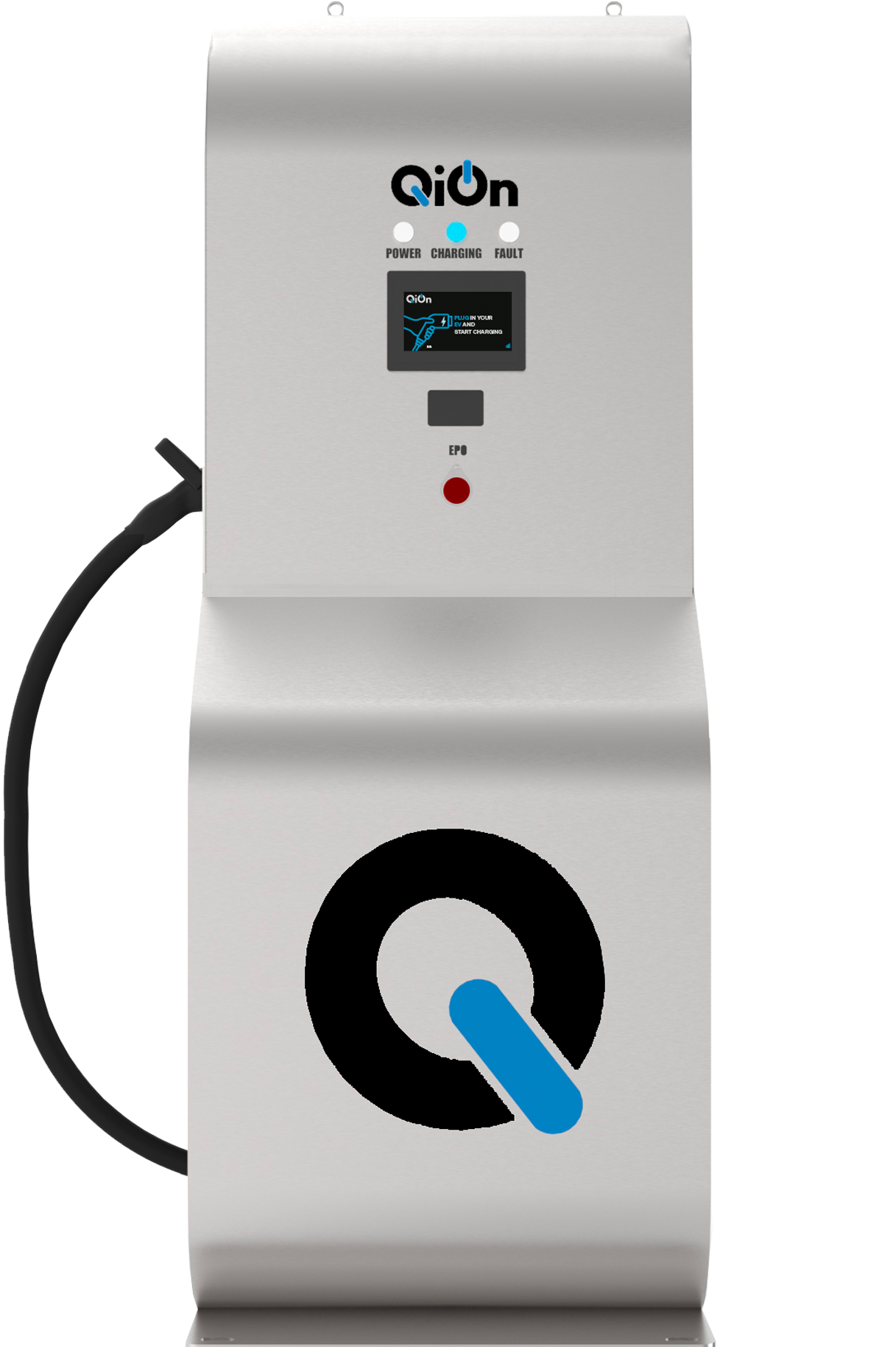

MegaThunder 1000kW DC charger render

MegaThunder

a single cable DC charging device able to deliver up to 3000kW*

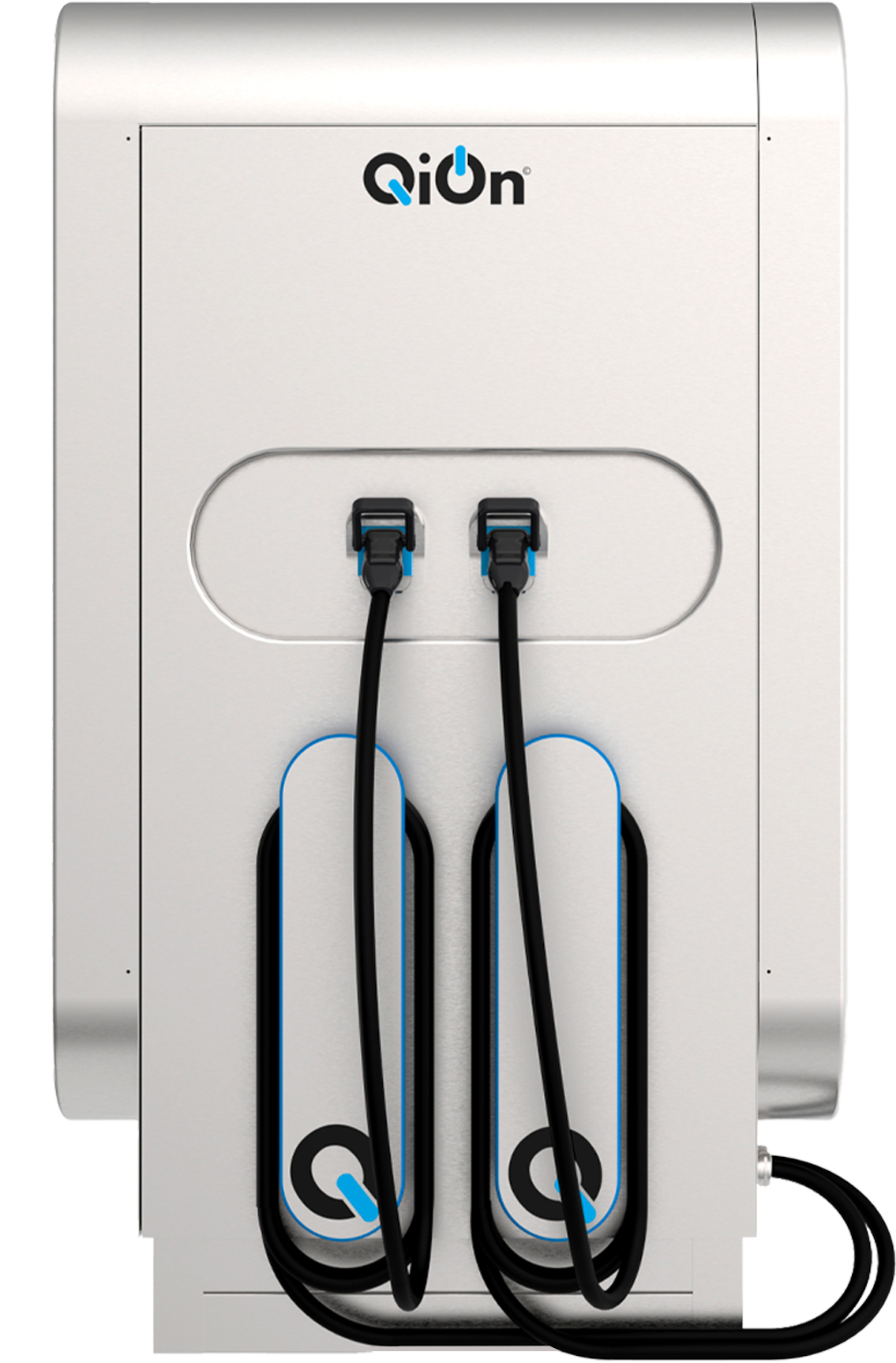

MegaThunder MultiPlug 1000kW charger render

MegaThunder MultiPlug

the multicable DC charging device able to deliver up to 4000kW*

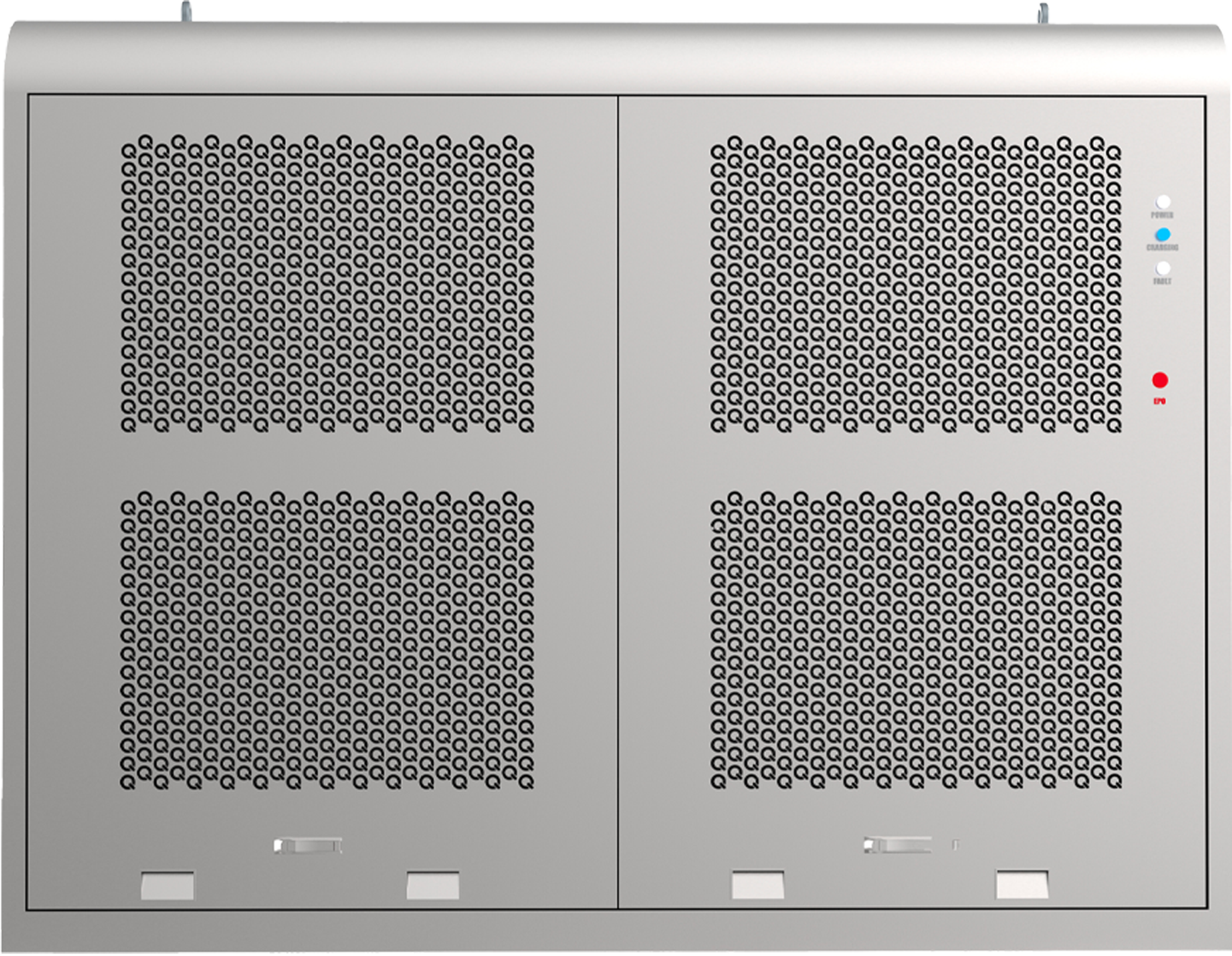

ThunderSource power cabinet render

ThunderSource

the scalable hub containing the ThunderBricks®. Up to 4 cabinets

Scalable Flexible Outputs

ThunderSet allows great output flexibility. Below are examples of some of the most requested configurations:

ThunderSet charging system configuration
