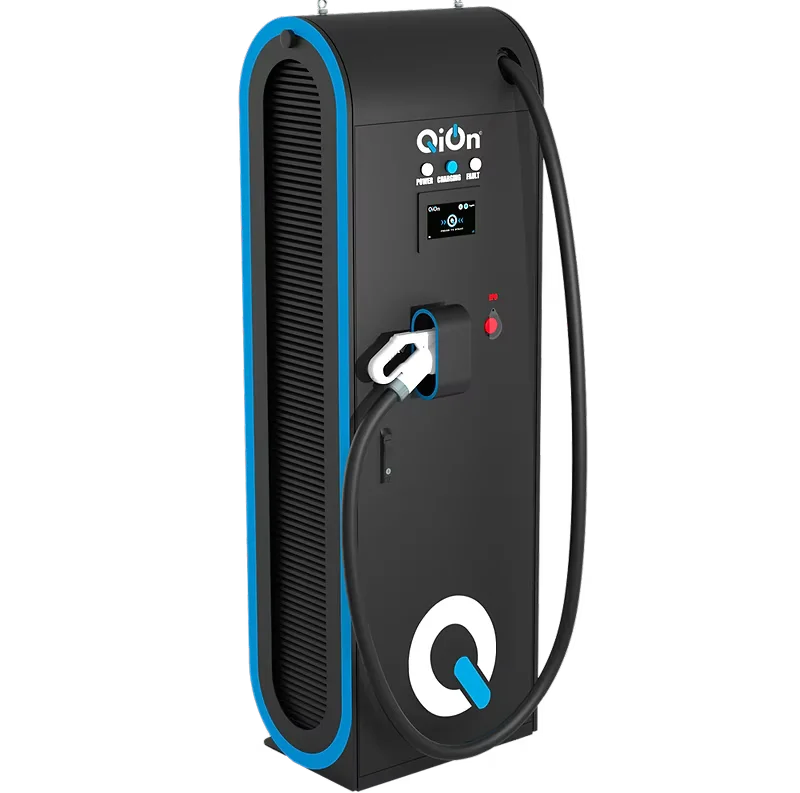

MAVERIQ
UP TO 360 KW INTEGRATED DC CHARGER
Industry‑leading power density in a chassis built to take on anything. Expandable from 30 to 360 kW and ready for the harshest environments, −35°C to +60°C. Compact enough to fit anywhere. Marine and desert ready. Every watt accounted for, every component engineered in‑house. Pure, concentrated force.
The Maveriq is the Swiss Army knife of chargers and can be configured to meet your site and customer needs.
The Maveriq — Ready for today, prepared for tomorrow.
- Standard Grade, Desert Grade or Nautic Grade designs to match your site.

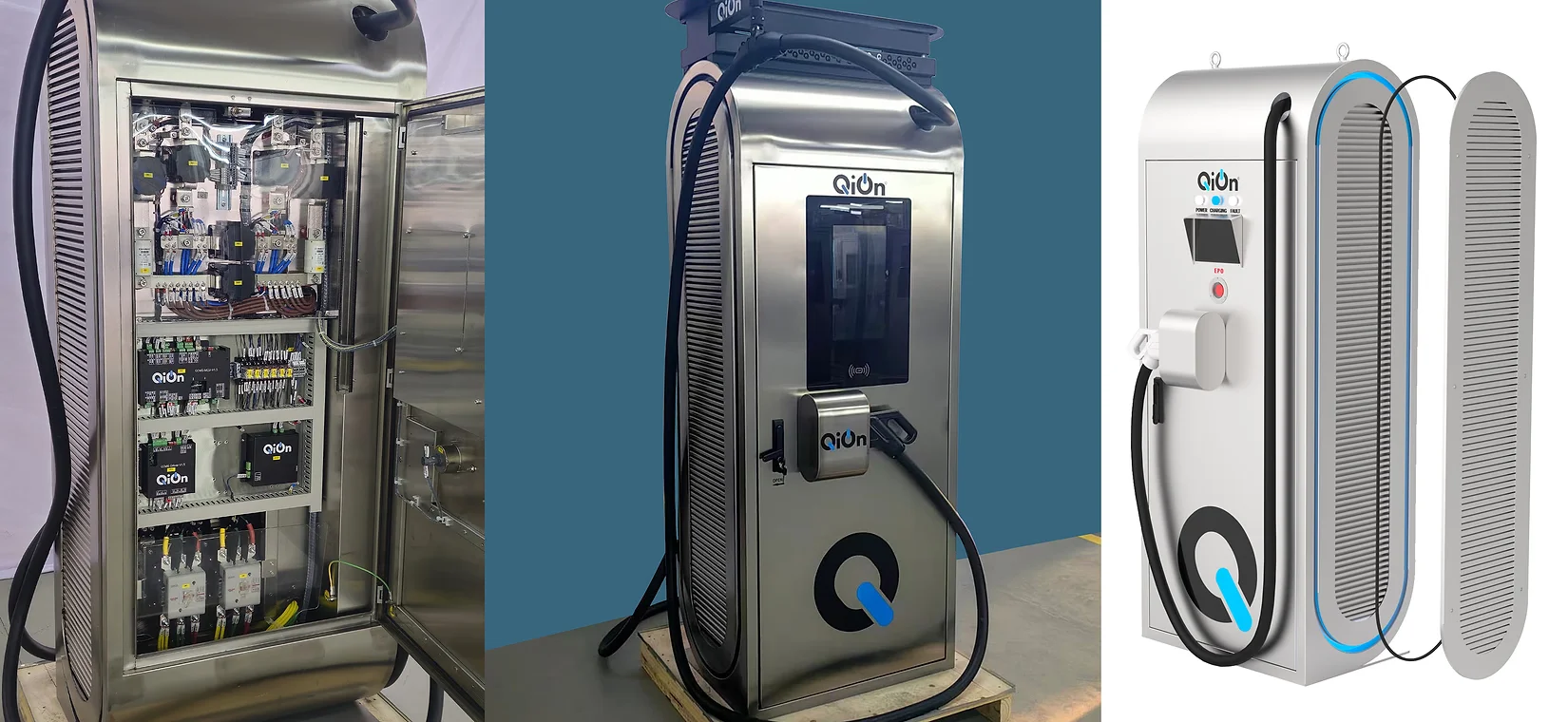

- IP65/IP66 chassis are part of the Desert and Nautic designs.
- ThunderBrick design — install a 30kW charger to match limited power availability, then upgrade to 360kW when more power from the grid or your BESS becomes available.
- Dual cable option allows two vehicles to charge from one Maveriq at the same time. QiOn's Balanced Output System will manage the power directed to each vehicle.

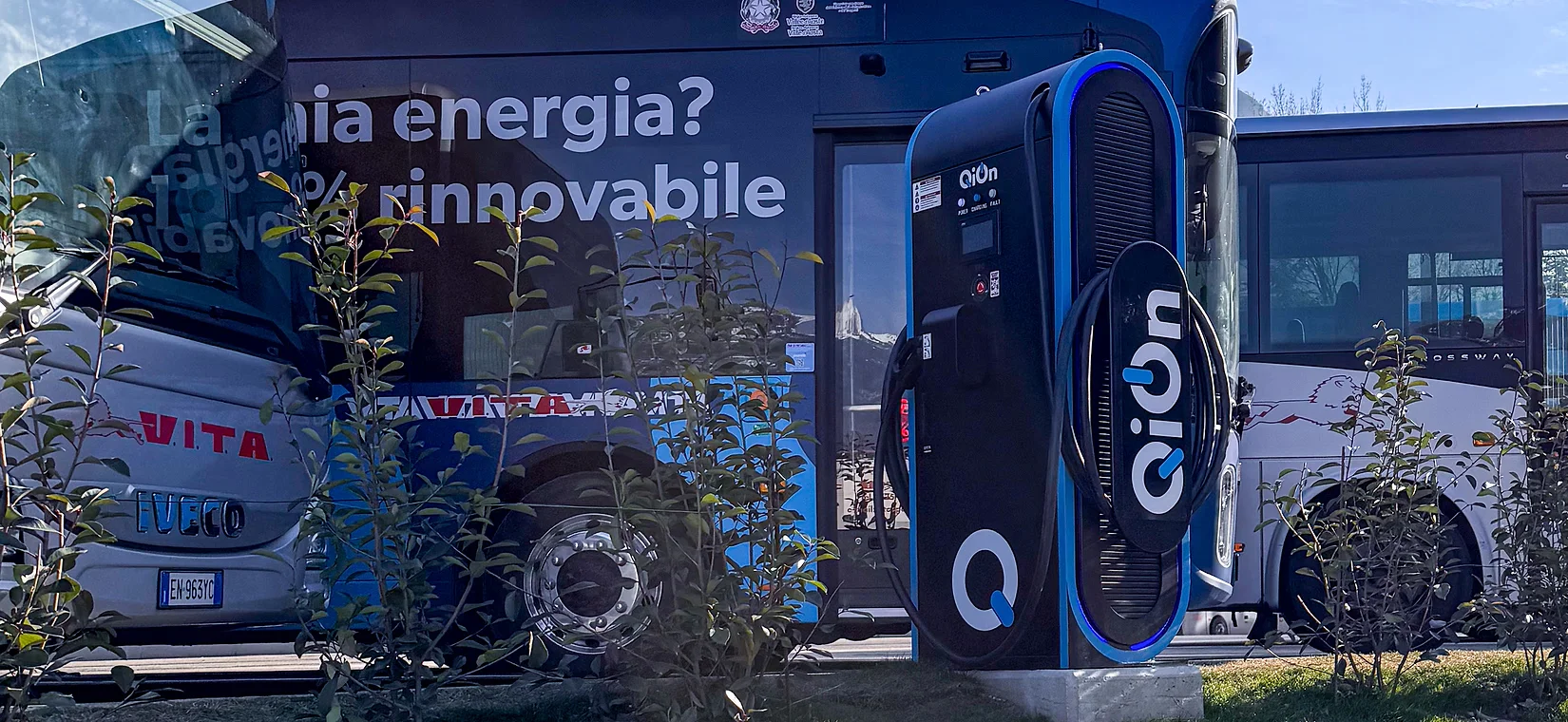

- 3 different cable management systems: Standard (plugs directly into the front), Cable Arm (overhead arm for easy positioning), Cable Winder (keeps long cables clean and the area safe).
Product Specifications
Height (A):1980 mm (77.2")
Width (B):650 mm (25.3") - 850 mm (33.1")
Depth (C):450 mm (17.5") - 550 mm (21.4")
Net Weight:275 kg (607 lb) - 285 kg (629 lb)
Cable Length:Based on request (cable management system available)
Voltage Input:Three Phase 380 V±10% / 480 V±10%
Voltage Output:DC 200‑1000 V
Current Output:Up to 500 A
Power Output:Up to 360 kW
