BRIQ

29 kWh / 70 kWh - THE PORTABLE SELF‑CONTAINED DC CHARGER

Portable, self‑contained DC charger — shipped fully assembled, ready to operate. Rugged stainless steel, 360° maneuverability, rechargeable via AC or DC. Motorsport, valet charging, vehicle evacuations, remote locations. Where there's no grid, there's BRIQ. Shipped fully assembled and integrated — delivered on wheels, with forklift pockets and hangers integrated into the chassis, dual shock absorbers, rugged wheels, integrated brakes, and protective doors for enhanced enclosure rating.

  • Recharge via AC from grid or DC from a charging station.

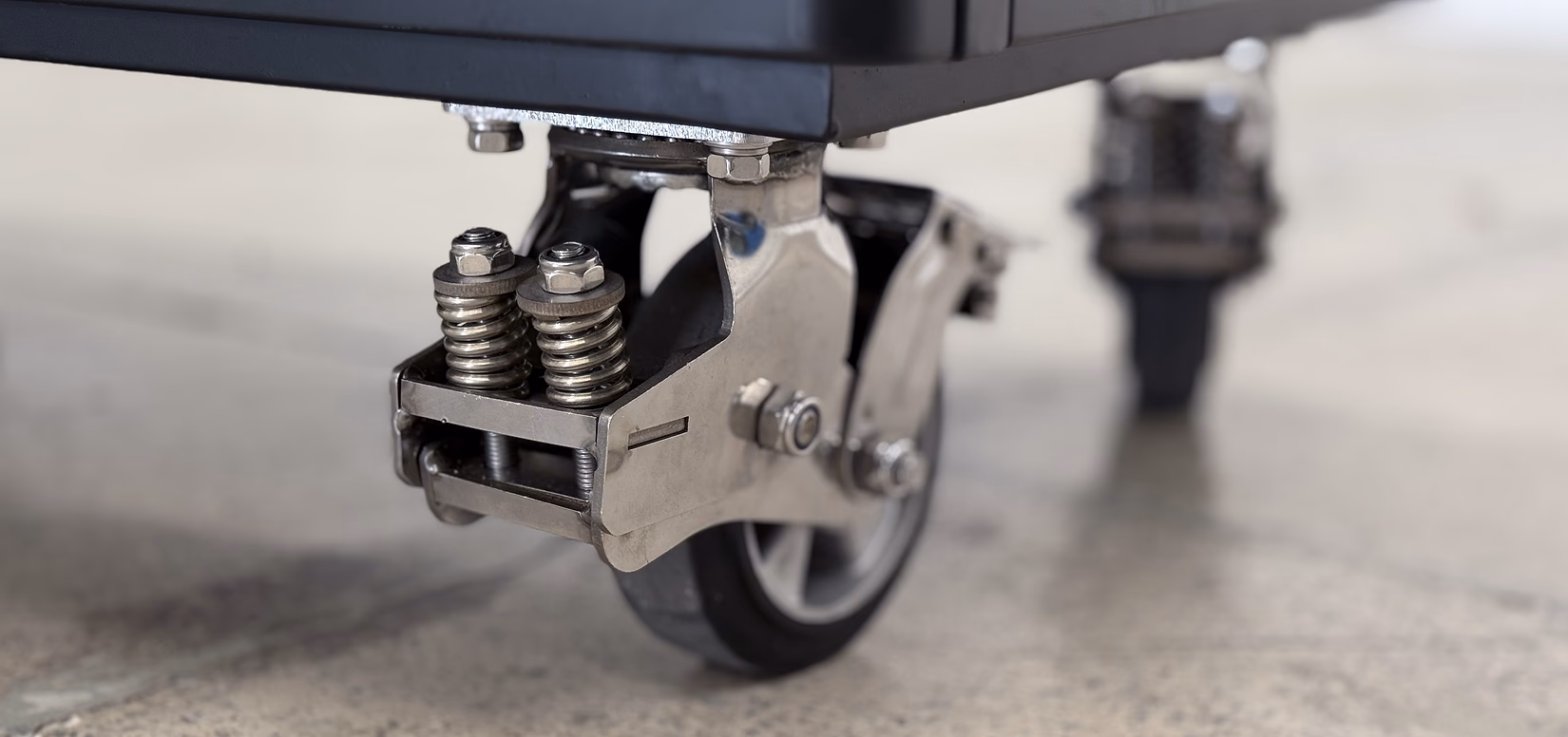

  • Rugged stainless steel wheel suspension with 4 integrated brakes

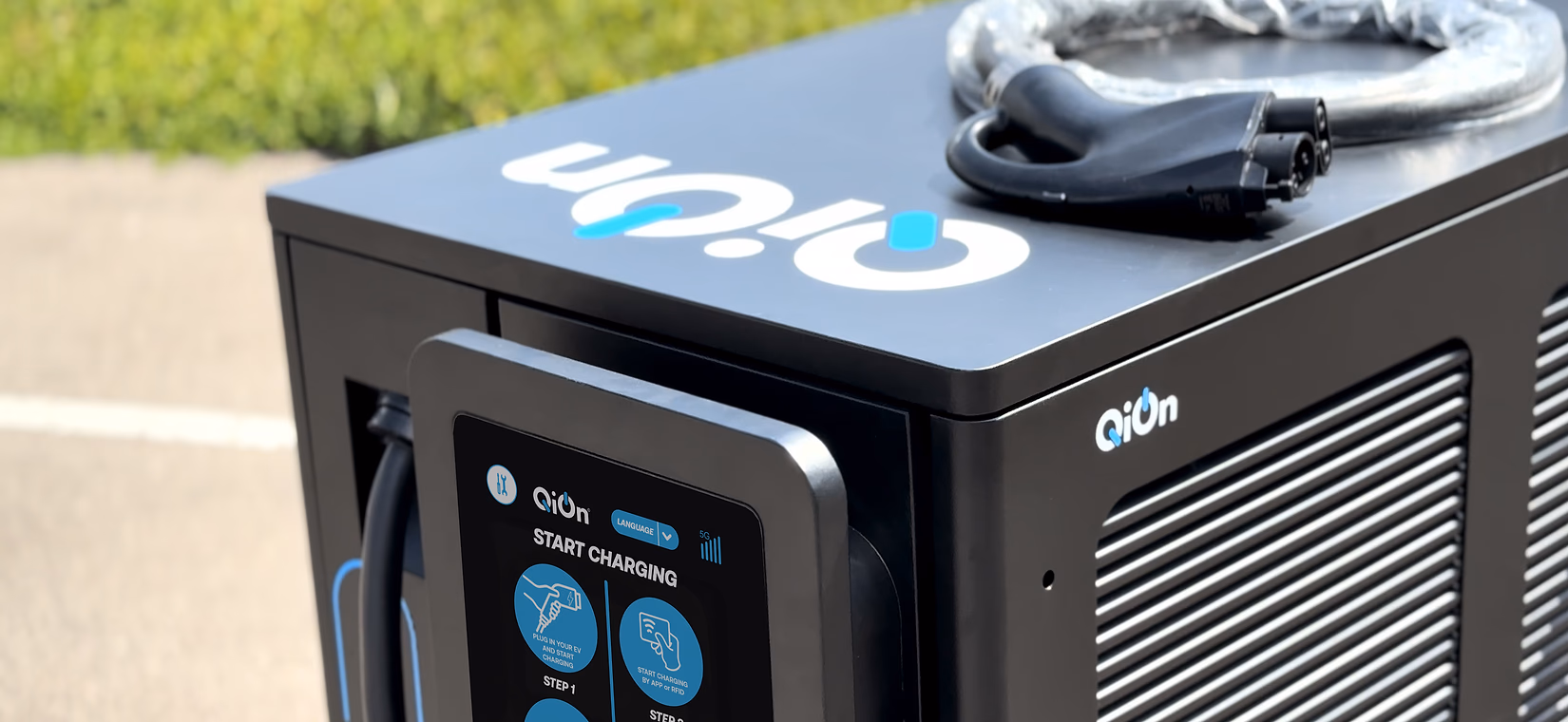

  • Integrated forklift pockets and touchscreen display
  • 360° maneuverability / Working temperature up to +60°C
  • Includes an extra kit of spare parts as standard.
  • OPERATIONS WON'T BE INTERRUPTED. Ideal for motorsport events, vehicle evacuations, underground valet charging, and all on‑demand charging needs where fixed infrastructure is impractical.

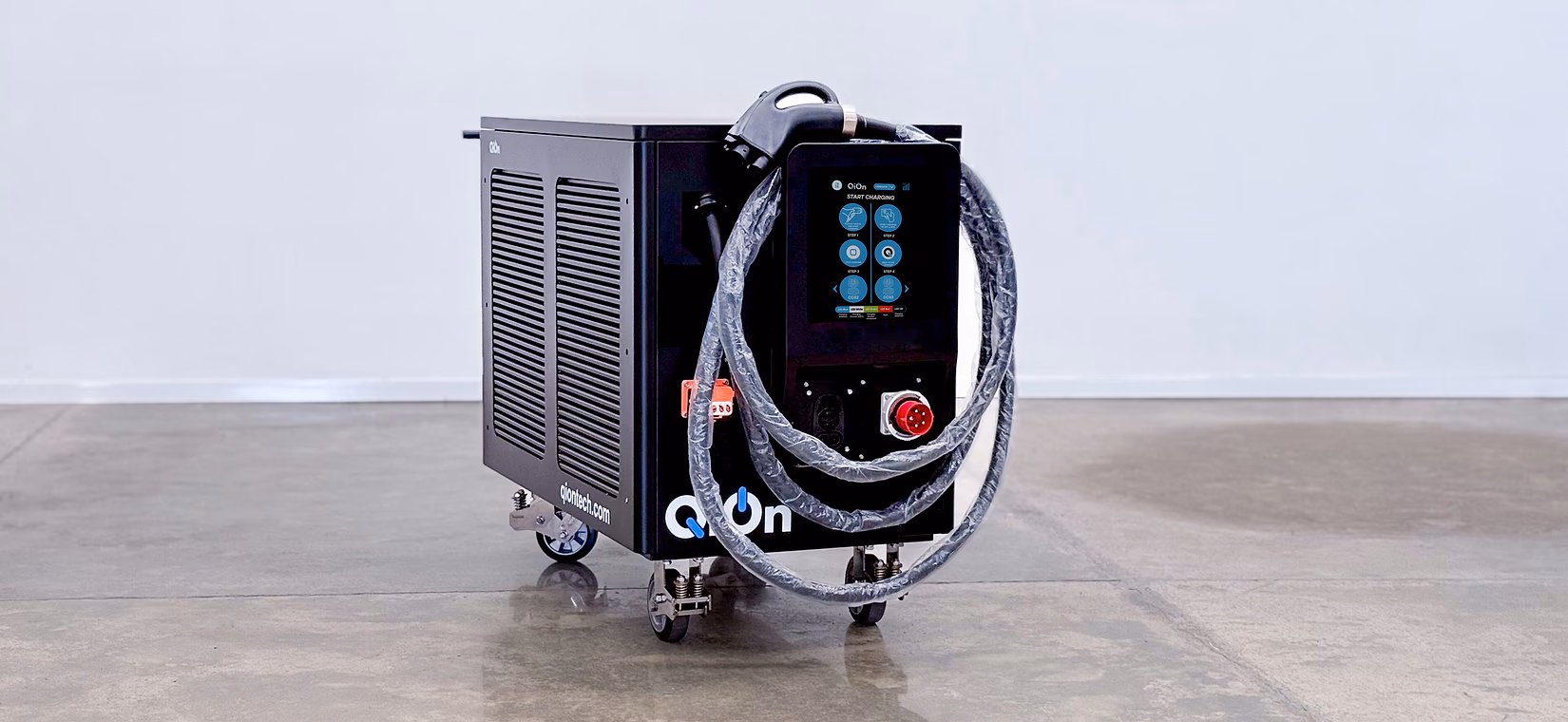

BRIQ 29 kWh portable DC charger

BRIQ

BRIQ 29 kWh portable DC charger 3D render

Product Specifications

Height (A):980 mm (38.5")
Width (B):710 mm (27.9")
Depth (C):1300 mm (51.2")
Net Weight:386 kg (851 lb)
Output Cable:7 m / 23 ft default (up to 30 m)
Battery Capacity:29 kWh
Cycle Life:≥5000 times (70% DOD) at 1C
DC Input:NACS‑CCS1‑CCS2‑GB/T
Voltage Output:DC Three Phase 200‑1000 V±10%
Current Output:Max 100 A
Power Output:Max 26 kW

BRIQ 70 kWh

BRIQ 70 kWh portable DC charger 3D render
Height (A):1050 mm (41.3")
Width (B):1580 mm (62.2")
Depth (C):925 mm (36.4")
Net Weight:770 kg (1697 lb)
Output Cable:Based on request (up to 7.5 m / 23 ft default)
Battery Capacity:69.6 kWh
Cycle Life:≥5000 times (70% DOD) at 1C
DC Input:NACS‑CCS1‑CCS2‑GB/T
Voltage Output:DC Three Phase 200‑1000 V±10%
Current Output:Max 100 A
Power Output:Max 60 kW (DC)

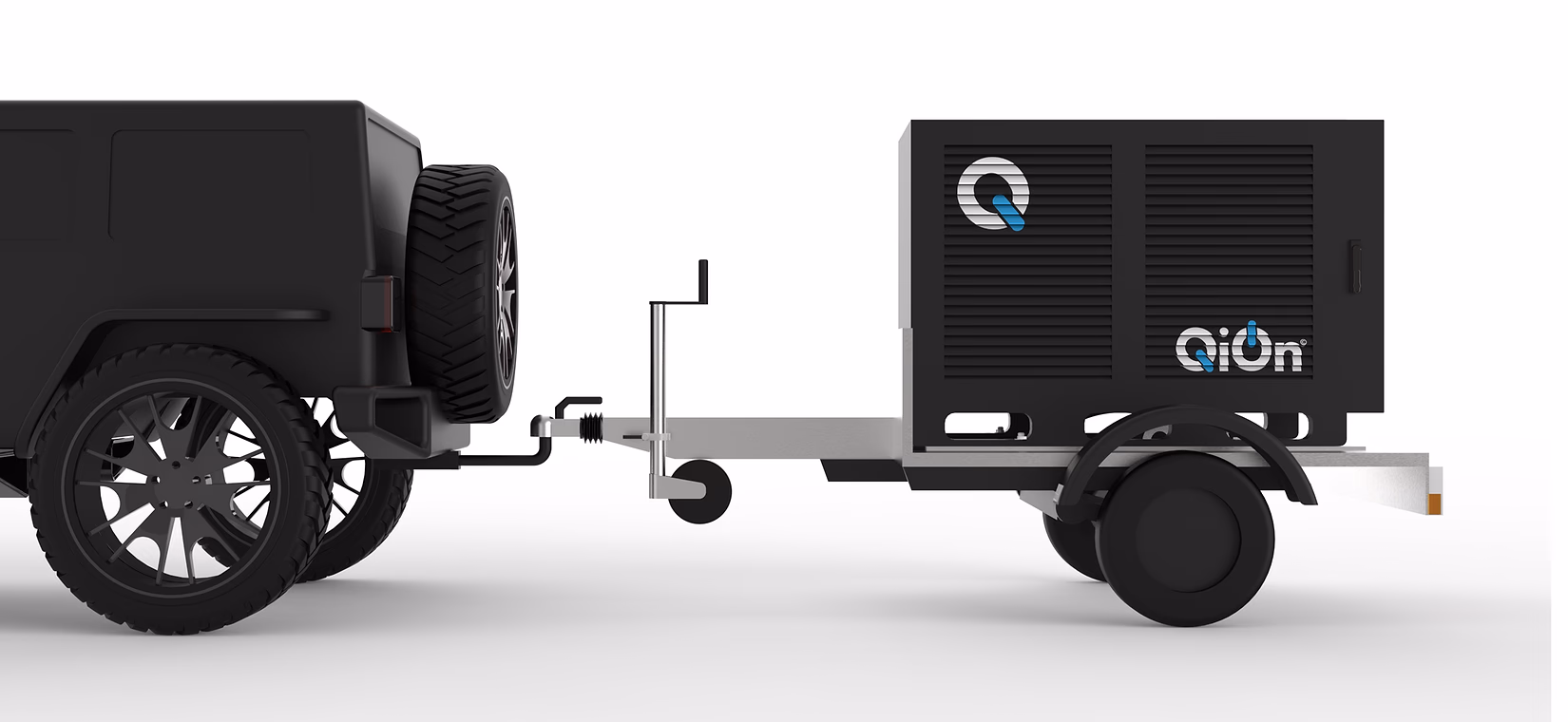

Trailer‑Cart Configuration

The same BRIQ platform, mounted on a dedicated trailer‑cart* — engineered to take DC charging literally anywhere. Purpose‑built for extreme and remote scenarios: rescue operations, natural disasters, emergency evacuations, off‑grid events. Rechargeable via AC or DC, with Polar, Desert, and Marine Grade options available. When the grid is down or doesn't exist, BRIQ moves in.

Rescue. Reach. Recharge.

*Trailer‑cart configuration may vary by destination market.

BRIQ‑AWAY trailer‑mounted charger 3D render
Height (A):975 mm (38.4")
Width (B):1423 mm (56")
Depth (C):710 mm (27.9")
Net Weight:386 kg (851 lb)
Output Cable:Up to 7.5 m / 23 ft (default)
Battery Capacity:29 kWh
Cycle Life:≥5000 times (70% DOD) at 1C
AC Recharging:Grid 400 Vac or 480 Vac (3P+N+PE)
DC Recharging:CCS1 / CCS2 / GBT / NACS
Voltage Output:DC 200‑1000 V±10%
Current Output:Max 100 A
Power Output:Max 26 kW

Warranty

  • Battery guaranteed up to 5000 Recharging Cycles.
  • QiOn spare parts kit included. Operations won't be interrupted.

Protection Grades

Altitude protection
Altitude
Over-heating protection
Over-heating
Polar Grade protection
Polar Grade
Desert Grade protection
Desert Grade
Nautic Grade protection
Nautic Grade

IP65/IP66
