BOQS

UP TO 40 KW INTEGRATED DC CHARGER

A powerful wall‑mounted DC charger for daily charging needs. Engineered to blend into any environment. Certified for indoor and outdoor use, compatible with all DC plugs, built with heavy‑gauge metals and industrial‑grade components.

The BOQS is a destination charger. A location where fast charging isn't important, but quick charging is. Examples of destinations are restaurants, retail locations and parking facilities.

  • DC charging means charging won't be limited by the size of a vehicle's charging rectifier, which can be as slow as 7kW.
  • Flexible input and output power rating that can be matched to your location. 20/30/40kW.
  • Dual cable configuration so two vehicles can charge at the same time. QiOn's Balanced Output System will manage the power directed to each vehicle.

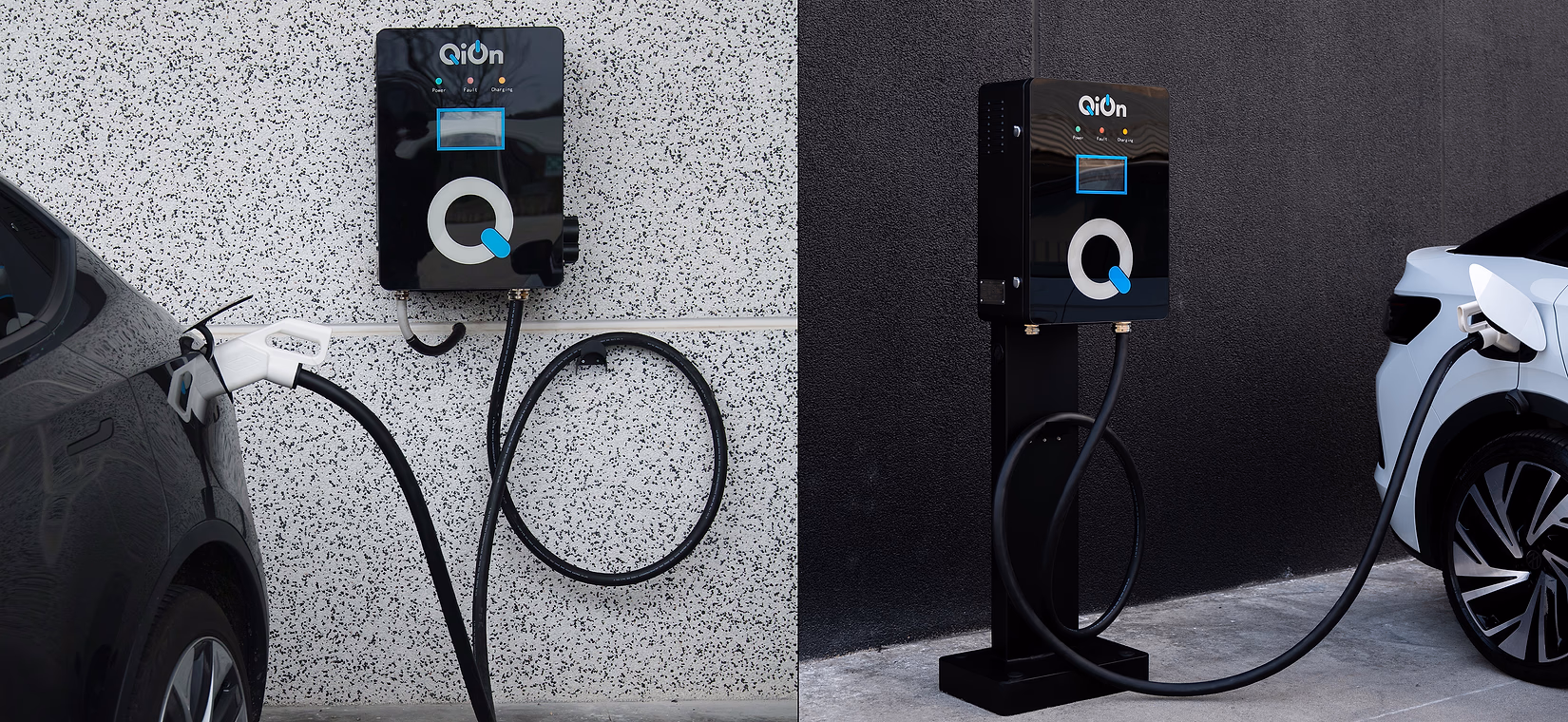

  • The BOQS can be mounted on a wall or pedestal.
  • Compact design, high quality finish. The tempered glass front panel with a touch screen that looks more like a cell phone than a charger.
  • Can be ordered with all standard DC plugs.

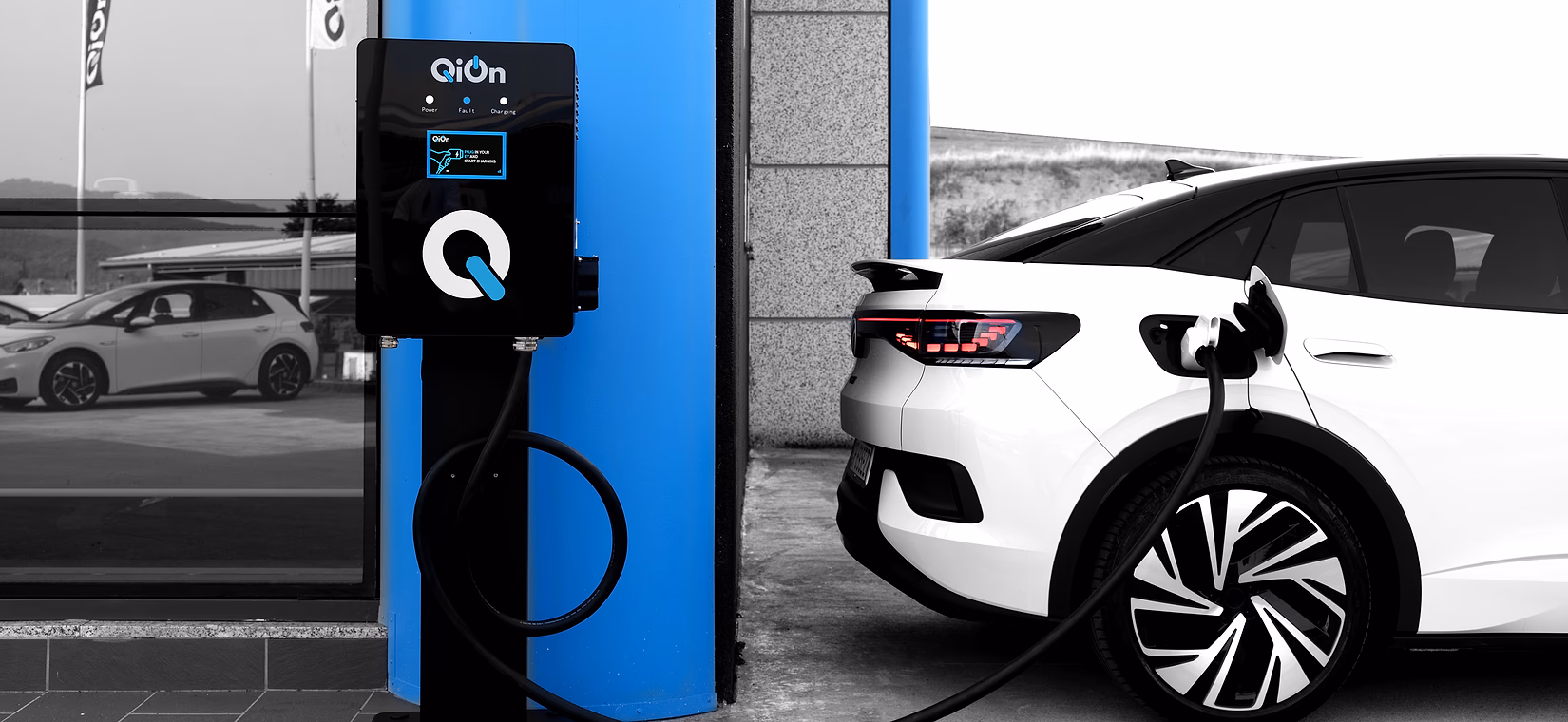

BOQS DC charger with VW EV
BOQS DC charger 3D render

Product Specifications

Height (A):653 mm / 25.71" (1711 mm / 67.36" with column support)
Width (B):473 mm / 25.71" (500 mm / 19.69" with column support)
Depth (C):280 mm / 11.03" (457 mm / 18.00" with column support)
Net Weight:46 kg / 101.43 lb
Column Weight:36 kg / 79.36 lb
Cable Length:Based on request (cable management system available)
Voltage Input:Three Phase 380 V±10% / 480 V±10%
Voltage Output:DC 200‑1000 V
Current Output:100 A
Power Output:20 / 30 / 40 kW
